Microfluidic Nucleic Acid Extraction: A Comprehensive 2024 Guide for Research & Diagnostic Applications

Abstract

This article provides a detailed overview of automated nucleic acid extraction (NAE) on microfluidic chips, targeting researchers and developers in biomedicine. It explores the core principles and advantages of miniaturization, reviews current methodologies (magnetic bead, silica membrane, and emerging techniques), and addresses common optimization challenges. The guide concludes with validation strategies and a comparative analysis against conventional methods, highlighting the technology's transformative potential for point-of-care diagnostics, high-throughput screening, and next-generation sequencing workflows.

What is Microfluidic Nucleic Acid Extraction? Core Principles and Miniaturization Advantages

This application note details the technological evolution from conventional, macro-scale nucleic acid extraction kits to fully integrated microfluidic platforms. Framed within a thesis on automated nucleic acid extraction on a chip, this document provides comparative data, detailed protocols, and essential resource lists for researchers and development professionals aiming to transition to or develop microfluidic solutions.

Comparative Analysis: Macro-scale Kits vs. Microfluidic Chips

The transition involves significant changes in scale, reagent consumption, and integration. The following table summarizes key quantitative differences.

Table 1: Quantitative Comparison of Extraction Platforms

Parameter	Conventional Macro-scale Kit (Column-based)	Integrated Microfluidic Chip
Typical Sample Volume	200 µL - 1 mL	1 µL - 100 µL
Total Reagent Consumption	1 mL - 3 mL	10 µL - 200 µL
Processing Time (Manual)	45 - 90 minutes	< 30 minutes (automated on-chip)
Elution Volume	50 - 200 µL	5 - 20 µL
Final DNA Concentration	10 - 100 ng/µL	50 - 500 ng/µL (due to low elution vol.)
Throughput (Manual)	1-12 samples per run	1-96+ samples per chip (parallel)
Footprint	Bench-top centrifuge, heater, vortex	Compact instrument (<0.5 sq. m)

Experimental Protocols

Protocol 1: Operation of a Typical Silica-Membrane Macro-scale Kit

This protocol is the benchmark against which microfluidic performance is measured.

1. Materials & Reagents:

• Sample: 200 µL whole blood.
• Commercial Kit (e.g., QIAamp DNA Blood Mini Kit).
• Ethanol (96-100%).
• Microcentrifuge.
• Heating block or water bath.
• Vortex mixer.
• Microcentrifuge tubes (1.5 mL, 2 mL).

2. Procedure:

• Lysis: Mix 200 µL sample with 200 µL lysis buffer and 20 µL Proteinase K. Vortex. Incubate at 56°C for 10 min.
• Binding: Add 200 µL ethanol (96-100%) to the lysate. Vortex. Transfer mixture to a spin column. Centrifuge at 6,000 x g for 1 min. Discard flow-through.
• Washing: Add 500 µL Wash Buffer 1 to the column. Centrifuge at 6,000 x g for 1 min. Discard flow-through. Add 500 µL Wash Buffer 2. Centrifuge at full speed (20,000 x g) for 3 min. Discard flow-through.
• Elution: Place column in a clean 1.5 mL tube. Apply 50-200 µL Elution Buffer (or AE buffer) to the center of the membrane. Incubate at room temperature for 5 min. Centrifuge at full speed for 1 min to elute DNA.
• Storage: Store eluted DNA at -20°C.

Protocol 2: On-Chip Nucleic Acid Extraction Using a Solid-Phase Reversible Immobilization (SPRI) Bead Method

This protocol details a common method adapted for microfluidic automation.

1. Materials & Reagents:

• On-Chip Materials: PDMS-glass hybrid chip with integrated magnetic micro-actuators.
• Reagents: Paramagnetic silica beads, Guanidinium-based lysis/binding buffer, 80% Ethanol wash buffer, TE elution buffer.
• Instrumentation: Custom microfluidic controller with pneumatic valves and syringe pumps.

2. Procedure:

• Priming: Hydrodynamically prime all chip channels with their respective buffers.
• Sample/Bead Loading: Introduce 20 µL of pre-mixed sample and paramagnetic silica beads in lysis/binding buffer into the designated chamber.
• On-Chip Incubation: Allow lysis/binding for 5 minutes at room temperature on-chip. Activate integrated magnetic actuators to immobilize bead-DNA complexes against the chamber wall.
• Washing: With beads immobilized, flow 100 µL of 80% ethanol wash buffer through the chamber over 1 minute. Deactivate magnets briefly, then reactivate to re-capture beads. Repeat with a second wash.
• Drying & Elution: Flow air through the chamber for 30 seconds to dry the beads. Deactivate magnets and resuspend beads in 10 µL of TE buffer (65°C). Incubate for 2 minutes. Activate magnets to immobilize beads, then transfer the eluted DNA to a clean outlet reservoir.
• Collection: The purified nucleic acid (now in ~8 µL) is collected via pipette from the outlet port for downstream analysis.

Workflow and System Diagrams

Title: Comparison of Macro vs. Microfluidic Nucleic Acid Extraction Workflows

Title: Functional Components of an Integrated Microfluidic NA Extraction Chip

The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Materials for Microfluidic NA Extraction Development

Item	Function in Microfluidic Context
Paramagnetic Silica Beads	Solid-phase matrix for nucleic acid binding; enables immobilization and movement via integrated magnets, eliminating need for centrifugation.
Guanidine Thiocyanate (GuSCN) Lysis Buffer	Chaotropic agent for cell lysis and DNA binding to silica surfaces; highly concentrated stocks used for on-chip dilution.
Surface-Active Agents (e.g., PEG, Triton X-100)	Added to binding buffers to enhance efficiency in low-volume, micro-scale mixing conditions.
PDMS (Polydimethylsiloxane)	Elastomeric polymer used to fabricate chip components via soft lithography; allows for integration of pneumatic valves.
Fluorinated Oil (for Droplet-based Chips)	Immiscible phase used to generate picoliter-nanoliter droplets for digital or single-cell extraction workflows.
SYBR Gold Nucleic Acid Stain	Fluorescent dye for real-time, on-chip quantification of DNA/RNA during or after extraction.
Bovine Serum Albumin (BSA)	Used to passivate microchannels and prevent non-specific adsorption of biomolecules to chip surfaces.

This document provides application notes and experimental protocols for leveraging core physics principles of miniaturization—laminar flow, surface-to-volume ratio, and diffusion—within the framework of automated nucleic acid extraction on a microfluidic chip. Optimizing these principles is critical for enhancing extraction efficiency, purity, speed, and integration in downstream diagnostic and drug development applications.

Application Notes

Laminar Flow in Microfluidic Extraction

In microchannels (typically Dh < 500 µm), flow is characterized by low Reynolds numbers (Re << 2000), resulting in laminar, parallel streamlines without turbulence. This principle is exploited for precise reagent delivery, on-chip valving, and the creation of concentration gradients without mixing, except by diffusion.

Key Application: Laminar flow enables the "flow-over" technique, where a lysed sample stream flows adjacent to a stationary phase (e.g., silica-coated micropillars). Biomolecules diffuse perpendicularly to the flow to bind the surface, while cellular debris is carried away in the streamline, improving purity.

Surface-to-Volume Ratio (S/V)

Miniaturization drastically increases the S/V ratio. For a spherical droplet of radius r, S/V = 3/r. Scaling from a 1 mL tube (S/V ~ 60 cm⁻¹) to a 100 µm diameter channel (S/V ~ 4000 cm⁻¹) increases surface dominance.

Key Application: A high S/V ratio maximizes the effective area for solid-phase extraction (SPE). Silica-based binding surfaces can be engineered as micropillars, membranes, or beads packed in chambers, significantly increasing DNA binding capacity per unit volume and reducing reagent volumes for elution.

Diffusion as a Transport and Mixing Mechanism

At the microscale, molecular diffusion becomes a primary transport mechanism. The time (t) for a molecule to diffuse a distance x is approximated by t ≈ x²/2D, where D is the diffusion coefficient.

Key Application: Binding kinetics during nucleic acid capture are governed by diffusion to the surface. Efficient washing and elution require optimization of incubation times based on diffusive timescales. Rapid mixing for lysis or neutralization is achieved using chaotic advection geometries (e.g., serpentine channels) to reduce diffusive distances.

Table 1: Characteristic Parameters at the Microscale vs. Macroscale

Parameter	Macroscale (1.5 mL Tube)	Microscale (100 µm wide channel)	Impact on Nucleic Acid Extraction
Reynolds Number (Re)	100 - 1000 (Transitional)	0.01 - 10 (Highly Laminar)	Predictable flow, no turbulent mixing.
Surface-to-Volume Ratio (cm⁻¹)	~60	~4000	Enhanced surface binding efficiency.
Diffusion Time for DNA (D ~ 10⁻¹² m²/s)	~8.3 hours (to mix 1 cm)	~0.5 seconds (to mix 100 µm)	Faster binding/washing if distances are small.
Typical Volumes Processed	100 µL - 1 mL	1 nL - 10 µL	Reduced sample/reagent consumption.
Heat Transfer Rate	Slow	Very Fast	Rapid thermal cycling for integrated lysis.

Table 2: Diffusion Times for Key Molecules

Molecule	Approx. Diff. Coeff. (D) in Water (m²/s)	Time to Diffuse 100 µm	Time to Diffuse 1 mm
Small Ion / Buffer Molecule	1 x 10⁻⁹	0.005 s	0.5 s
Protein (e.g., BSA)	7 x 10⁻¹¹	0.07 s	7.1 s
Genomic DNA Fragment (10 kbp)	3 x 10⁻¹²	1.7 s	166.7 s (~2.8 min)

Experimental Protocols

Protocol 1: Characterizing Laminar Flow Profile for Reagent Segmentation

Objective: To establish and visualize laminar co-flow streams for segmented delivery of lysis, wash, and elution buffers. Materials: See "Scientist's Toolkit" (Table 3). Method:

• Chip Priming: Place PDMS/glass microfluidic chip on microscope stage. Use syringe pumps to prime all channels with 70% ethanol at 5 µL/min for 10 minutes, then flush with DI water for 10 minutes.
• Flow Rate Calibration: Using two inlet pumps, introduce streams of food dye (Inlet A) and DI water (Inlet B) at equal flow rates (Q = 1 µL/min).
• Visualization & Measurement: Capture bright-field/video at 10x magnification at the confluence junction and 5 mm downstream. Use image analysis software (e.g., ImageJ) to measure stream width.
• Analysis: Confirm stable, parallel streamlines with a sharp interface. The interface width will broaden slightly downstream due to transverse diffusion.

Protocol 2: Optimizing Binding Incubation Time via Diffusion-Limited Capture

Objective: Determine the minimum residence time in a capture chamber for efficient DNA binding. Materials: See "Scientist's Toolkit" (Table 3). Method:

• Chip Preparation: Use a chip with a packed bed of silica-coated magnetic beads (50 µm diameter) in a 1 nL chamber.
• Sample Introduction: Flow a fluorescently-labeled DNA ladder (1 kbp-10 kbp, 0.1 µg/µL in binding buffer) through the chamber at a constant flow rate (Q = 0.5 µL/min).
• Time-Course Measurement: Use a confocal microscope to take fluorescence intensity snapshots of the chamber every 30 seconds for 10 minutes.
• Data Processing: Plot normalized chamber fluorescence (proxy for bound DNA) vs. time. Fit curve to an exponential rise model: F(t) = F_max(1 - e^{-kt}), where *k is the effective rate constant dominated by diffusion.
• Determination: The time to reach 95% of F_max is the optimal minimum incubation time for your chamber geometry.

Protocol 3: Evaluating Elution Efficiency via High S/V Ratio Effects

Objective: Assess elution volume and contact time needed for high-yield recovery from a high-S/V structure. Materials: See "Scientist's Toolkit" (Table 3). Method:

• DNA Capture: Load a known quantity of genomic DNA (e.g., 500 ng from lambda phage) in binding buffer onto the chip's SPE region (e.g., silica monolith). Wash with 10 chamber volumes of wash buffer.
• Elution Protocol: Apply a low-salt elution buffer (10 mM Tris-HCl, pH 8.5) in a stepwise manner. Collect five sequential eluate fractions (E1-E5), each equal to one chamber void volume.
• Quantification: Measure DNA concentration in each fraction using a fluorometric assay (e.g., Qubit).
• Analysis: Calculate cumulative yield. A well-designed high-S/V structure should release >90% of bound DNA in the first 2-3 void volumes, demonstrating efficient surface access.

Visualizations

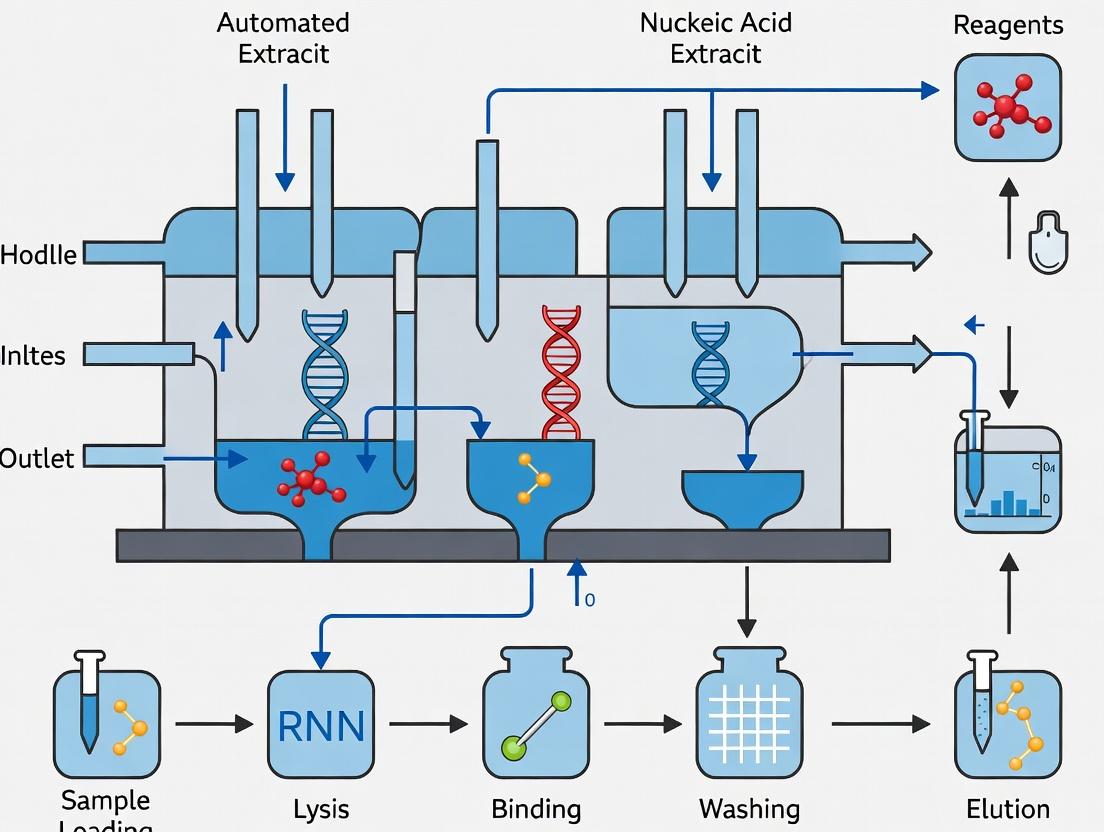

Diagram 1: Microfluidic nucleic acid extraction workflow.

Diagram 2: Physics principles linked to chip effects.

The Scientist's Toolkit

Table 3: Essential Research Reagent Solutions & Materials

Item	Function in Protocol	Example Product/Specification
PDMS Microfluidic Chip	Contains etched channels for fluidic operations.	Custom design with 100 µm x 100 µm channels, bonded to glass.
Programmable Syringe Pumps	Provide precise, pulseless flow for laminar regime.	neMESYS Low Pressure Syringe Pump.
Silica-Coated Magnetic Beads	High S/V solid phase for nucleic acid binding.	1 µm diameter, superparamagnetic, sol-gel silica coating.
Chaotic Mixer Chip Design	Reduces diffusive path length for rapid mixing.	Herringbone or staggered herringbone micromixer.
Binding/Wash Buffer (High Salt)	Promotes nucleic acid adsorption to silica surface.	6 M GuHCl, 10 mM Tris-HCl, pH 6.5, 0.1% Triton X-100.
Low-Salt Elution Buffer	Disrupts nucleic acid-silica interaction for release.	10 mM Tris-HCl, pH 8.5, or nuclease-free water.
Fluorescent DNA Intercalating Dye	Visualizes flow streams and quantifies DNA.	SYBR Green I or YOYO-1.
Benchtop Fluorometer	Quantifies nucleic acid concentration in eluates.	Qubit 4 Fluorometer with dsDNA HS Assay.

Application Notes: Microfluidic Nucleic Acid Extraction in Modern Research

Within the broader thesis on automated nucleic acid extraction on microfluidic chips, these core advantages converge to address critical bottlenecks in genomics, diagnostics, and drug development. The shift from conventional macroscale systems (e.g., column-based or magnetic bead processing in 96-well plates) to integrated microfluidic platforms fundamentally transforms workflow efficiency and accessibility.

Reduced Reagent Consumption: Microfluidic chips operate with nanoliter to microliter volumes, slashing reagent costs by 50-90% compared to standard protocols. This is paramount for expensive enzymatic mixes, specialized buffers, and novel therapeutic nucleic acid samples.

Faster Processing: By minimizing diffusion distances and enhancing surface-to-volume ratios, binding, washing, and elution steps are accelerated. Integrated automation allows parallel processing, turning multi-hour extraction and purification protocols into tasks completed in 10-30 minutes.

Enhanced Automation: On-chip valving, pumping, and fluidic routing, controlled by software, enable "sample-in, answer-out" operation. This minimizes manual intervention, reduces cross-contamination risk, and improves reproducibility for high-throughput applications like NGS library prep or pathogen screening in clinical trials.

---

Table 1: Performance Comparison: Microfluidic Chip vs. Conventional Benchtop Methods

Parameter	Conventional Bench (Magnetic Beads)	Microfluidic Chip Platform (Representative)	Advantage
Sample Input Volume	100-1000 µL	10-100 µL	90% reduction possible
Total Reagent Consumption	500-2000 µL per prep	50-150 µL per prep	70-92% reduction
Total Processing Time	60-120 minutes	12-25 minutes	4-5x faster
Hands-on Time	30-45 minutes	<2 minutes (loading only)	Near-full automation
Elution Volume	50-100 µL	10-20 µL	Higher final concentration
Yield (from 200µL blood)	60-85%	70-90%	Comparable or improved
Parallelization	8-96 samples (requires robotic handler)	1-12 samples per chip (multiple chips runnable)	Simplified scalability

Table 2: Impact on Downstream Applications

Downstream Assay	Benefit from Microfluidic Extraction	Key Metric Improvement
qPCR / dPCR	Reduced inhibitor carryover, smaller elution volume.	Ct values reduced by 1-3 cycles; improved precision.
Next-Generation Sequencing (NGS)	Superior library prep efficiency from minimal sample.	Lower duplicate rates, better coverage uniformity from low-input samples.
Point-of-Care Diagnostics	Enables rapid, integrated systems for field use.	Time-to-result under 30 minutes from raw sample.
High-Throughput Drug Screening	Enables processing of thousands of cell culture/lysate samples.	Cost per sample reduced by >60% for genome-wide studies.

---

Experimental Protocols

Protocol 1: On-Chip Solid-Phase Extraction Using Silica Membranes

Objective: Extract high-purity genomic DNA from whole blood on a pressure-driven PDMS/glass microfluidic chip.

Key Reagents & Materials: See "The Scientist's Toolkit" below.

Methodology:

• Chip Priming: Mount chip on controller. Flush all channels with 100 µL of nuclease-free water, followed by 50 µL of Binding Buffer (containing guanidine HCl and isopropanol).
• Sample Preparation & Loading: Mix 20 µL of fresh whole blood with 60 µL of Binding Buffer and 20 µL of Proteinase K off-chip. Incubate at 56°C for 5 min. Load the 100 µL lysate mixture into the designated sample reservoir.
• Automated Binding: Activate the on-chip pneumatic valves per the programmed sequence. The controller drives the lysate through the embedded silica membrane at a flow rate of 2 µL/sec. DNA binds to the silica under high-salt conditions.
• Washing: Sequential automated passage of 50 µL of Wash Buffer 1 (guanidine HCl, ethanol) and 80 µL of Wash Buffer 2 (ethanol, 70%) across the membrane at 3 µL/sec. Waste is directed to a separate reservoir.
• Elution: After a 30-second dry phase (air purge), elute purified DNA by passing 15 µL of pre-heated (70°C) Elution Buffer (10 mM Tris-HCl, pH 8.5) across the membrane at 1 µL/sec. Collect eluate from the output port.
• Analysis: Quantify DNA yield and purity via microvolume spectrophotometry and assess integrity by agarose gel electrophoresis or chip-based assay.

Protocol 2: Magnetic Bead-Based Extraction on a Digital Microfluidic (DMF) Chip

Objective: Perform automated RNA extraction from cell lysate using electrowetting-on-dielectric (EWOD).

Key Reagents & Materials: See "The Scientist's Toolkit" below.

Methodology:

• Chip Preparation: Load reagents (Lysis/Binding, Wash 1, Wash 2, Elution) into designated reservoirs on the DMF cartridge. Pipette 5 µL of functionalized magnetic beads and 25 µL of cell lysate into the reaction zone.
• Droplet Merging & Binding: Using software control, actuate electrodes to merge the bead and lysate droplets. Mix by moving the combined droplet back and forth for 3 minutes. RNA binds to beads under high-salt conditions.
• Bead Washing: Using an on-chip magnet, immobilize the bead pellet. Actuate electrodes to split the waste supernatant away. Move a 40 µL Wash 1 droplet over the beads, resuspend by droplet motion (1 min), and immobilize to remove waste. Repeat with Wash 2.
• Elution: Move a 12 µL Elution Buffer droplet over the washed beads. Mix for 2 minutes at 65°C (achieved by on-chip heater). Immobilize beads and move the purified RNA eluate droplet to the collection port.
• Collection & QC: Pipette the eluate from the port. Analyze using a bioanalyzer for RNA Integrity Number (RIN) and qRT-PCR for specific transcript recovery.

---

Visualizations

Diagram 1: Microfluidic NA Extraction Workflow

Diagram 2: System Architecture of an Automated Platform

---

The Scientist's Toolkit: Key Research Reagent Solutions

Table 3: Essential Materials for Microfluidic Nucleic Acid Extraction

Item	Function & Specification	Example/Note
Microfluidic Chip	Disposable or reusable device containing microchannels, valves, and extraction media.	PDMS-glass hybrid with integrated silica membrane; or cartridge-based DMF chip.
Lysis/Binding Buffer	Chaotropic salt-based solution (e.g., guanidine HCl) to denature proteins and promote NA binding to solid phase.	Often contains RNA/DNA stabilizers and inhibitors of nucleases.
Wash Buffers	Ethanol-based solutions with decreasing salt concentrations to remove contaminants while retaining NA on solid phase.	First wash: chaotrope + ethanol. Second wash: ethanol-only for final cleanup.
Elution Buffer	Low-ionic-strength, slightly alkaline buffer (e.g., Tris-EDTA, Tris-HCl) to destabilize NA-solid phase interaction.	Heated to 65-70°C to increase elution efficiency.
Functionalized Magnetic Beads	Paramagnetic particles coated with silica or carboxyl groups for sequence-specific or total NA capture.	Size: 1-3 µm. Bead concentration optimized for binding capacity vs. handling.
Proteinase K	Serine protease included in lysis step to digest nucleases and other proteins, improving yield and purity.	Used for tough samples like tissue or blood.
Carrier RNA	RNA added to lysis buffer to improve recovery of low-concentration viral RNA or cfDNA by competing for tube/bead surface sites.	Critical for sensitive diagnostic applications.
Nuclease-Free Water	Used for preparing buffers and chip priming to prevent sample degradation.	Must be certified DNase/RNase-free.
Positive Control	Known quantity of NA (e.g., from cultured cells, synthetic oligos) spiked into negative matrix to validate extraction efficiency.	Essential for protocol optimization and QC.

Within the context of automated nucleic acid extraction on a microfluidic chip, the fundamental differences between DNA and RNA as target molecules dictate distinct engineering and biochemical approaches. Successful on-chip integration requires a nuanced understanding of their contrasting physicochemical properties, stability profiles, and the consequent implications for protocol design. These considerations directly impact the efficiency, purity, and downstream applicability of the extracted nucleic acids for research and diagnostic applications.

Core Molecular Considerations: A Quantitative Comparison

The table below summarizes the key differentiating factors that must be addressed in microfluidic chip design.

Table 1: Critical Comparison of DNA and RNA for On-Chip Extraction

Property	DNA	RNA	Implication for On-Chip Design
Chemical Structure	Deoxyribose sugar; Thymine base; Typically double-stranded.	Ribose sugar; Uracil base; Typically single-stranded.	RNA is more chemically labile due to ribose's 2'-OH group, requiring stringent RNase inhibition.
Stability	Highly stable; resistant to alkaline hydrolysis.	Labile; susceptible to hydrolysis and ubiquitous RNase degradation.	Chip surfaces/materials must be treated or selected to be RNase-free. Protocols must be faster or incorporate coolants for RNA.
Required Lysis Conditions	Robust; often uses alkaline lysis (e.g., NaOH) or strong ionic detergents (e.g., SDS).	More gentle; often uses chaotropic salts (e.g., GuHCl) combined with RNase inhibitors.	May necessitate separate lysis zones or reagent channels for DNA vs. RNA protocols on a universal chip.
Binding to Silica	Binds efficiently at high chaotropic salt concentrations (pH ≤ 7.5).	Binds efficiently at high chaotropic salt concentrations (with ethanol). Optimal binding at pH ≤ 7.5, but more sensitive to salt/ethanol ratios.	Similar but not identical binding chemistry. RNA may require more precise volumetric control of binding buffers.
Elution	Eluted in low-ionic-strength buffer (e.g., TE, Tris) or nuclease-free water at elevated temperature (65-70°C).	Eluted in nuclease-free water or TE buffer. Often eluted at 55-65°C to maintain integrity.	Separate thermal control zones may be needed. Elution reservoir must be certified RNase-free for RNA.
Common Downstream Use	PCR, sequencing, genotyping, cloning.	RT-qPCR, RNA-Seq, gene expression analysis, microarray.	RNA extraction purity is critical, as contaminants inhibit reverse transcriptase.

Detailed On-Chip Protocols

Protocol A: On-Chip Genomic DNA Extraction from Cultured Cells

Application Note: This protocol is optimized for the isolation of high-molecular-weight genomic DNA from mammalian cells using a silica-membrane-based microfluidic chip.

Research Reagent Solutions & Materials:

Item	Function
Chaotropic Lysis/Binding Buffer (e.g., GuHCl or NaI-based)	Denatures proteins, inhibits nucleases, and provides high-ionic-strength conditions for nucleic acid binding to silica.
RNase A (Optional)	Degrades contaminating RNA to increase DNA purity.
Wash Buffer 1 (Chaotropic salt + ethanol)	Removes contaminants while keeping DNA bound.
Wash Buffer 2 (Ethanol or ethanol-based buffer)	Removes salts and residual contaminants.
Low TE Buffer (10 mM Tris-HCl, 0.1 mM EDTA, pH 8.5) or Nuclease-free Water	Elutes pure DNA from the silica matrix. Stable pH of Tris preserves DNA.
Silica-Coated Microchamber	Solid-phase matrix for selective nucleic acid binding.
On-chip Pneumatic or Peristaltic Micropumps/Valves	Precisely controls fluid flow and timing.
Off-chip Centrifuge or Vacuum Manifold	Drives liquids through the silica membrane (for some chip designs).

Experimental Workflow:

• Cell Loading: Introduce ~1×10^6 pelleted cells in PBS into the chip's input port.
• Lysis: Mix cell suspension with 200 µL of Lysis/Binding Buffer and 4 µL of RNase A (if desired). Incubate on-chip at room temperature for 2 minutes.
• Binding: Transfer the lysate across the silica-coated microchamber. Apply a negative pressure (or positive push) for 2 minutes to pass lysate through, enabling DNA binding.
• Washing: Pass 400 µL of Wash Buffer 1 through the chamber. Follow with 500 µL of Wash Buffer 2. Dry the membrane by pushing air through for 1 minute.
• Elution: Apply 50-100 µL of pre-heated (70°C) Low TE Buffer to the membrane. Incubate for 2 minutes. Collect the eluate by applying pressure. A second elution step can increase yield.

Protocol B: On-Chip Total RNA Extraction from Cultured Cells

Application Note: This protocol prioritizes speed and RNase inhibition for the isolation of intact total RNA, including miRNA, using a chaotropic-silica method.

Research Reagent Solutions & Materials:

Item	Function
Denaturing Guanidine Isothiocyanate (GITC) Lysis Buffer with β-mercaptoethanol	Immediately inactivates RNases, denatures proteins, and disrupts cells.
Acid-Phenol:Chloroform	For phase separation; removes proteins and lipids (used in some chip designs with a separation zone).
Ethanol (70-80%)	Provides correct ionic conditions for RNA binding to silica and is used for washing.
DNase I (RNase-free)	Removes contaminating genomic DNA.
RNase-free Elution Buffer or Nuclease-free Water	Elutes RNA without degrading it.
RNase-free Silica-Coated Microchamber	Critical for preventing RNA degradation during binding.
Integrated Cooled Zone (4-15°C)	Maintains low temperature during binding/wash to further inhibit RNases.

Experimental Workflow:

• Cell Loading & Lysis: Immediately lyse ~1×10^6 cells in 350 µL of GITC-based lysis buffer loaded onto the chip. Ensure complete homogenization within 30 seconds.
• Binding: Add 250 µL of ethanol (96-100%) to the lysate and mix. Transfer the mixture across the RNase-free silica chamber at 15°C. Apply pressure to pass the mixture through.
• DNase Treatment (On-Column): Prepare an on-membrane digest by applying 50 µL of DNase I incubation mix (in digestion buffer). Incubate on-chip at 20-25°C for 15 minutes.
• Washing: Wash with 400 µL of a low-salt buffer, followed by 500 µL of 80% ethanol. Dry the membrane with air for 1 minute.
• Elution: Elute with 30-50 µL of nuclease-free water (pre-heated to 65°C) by incubation and pressure-driven flow. Collect eluate in a nuclease-free tube.

Visualized Workflows and Considerations

Application Notes: The Integration of Automated NA Extraction in Microfluidics

The COVID-19 pandemic served as a profound catalyst, accelerating the development and deployment of point-of-care (POC) diagnostic platforms. This urgent demand underscored the critical need for fully automated, sample-to-answer systems, placing microfluidic-based automated nucleic acid (NA) extraction at the center of innovation. The evolution of Lab-on-a-Chip (LOC) technologies has transitioned from academic proof-of-concept to essential tools for rapid, decentralized testing. Within this thesis on automated NA extraction on microfluidic chips, the convergence of these three drivers is analyzed to define the specifications for next-generation systems: speed (<20 minutes), sensitivity (approaching PCR efficiency), and simplicity of operation for non-specialist settings.

Table 1: Performance Comparison of Recent Microfluidic NA Extraction Methods (2022-2024)

Method (Chip Substrate)	Lysis Method	Capture Mechanism	Elution Volume	Efficiency (%)	Time (min)	Target Application
Silica-Membrane (PDMS)	Chemical (GITC)	Surface-functionalized pillar array	15 µL	85 ± 5	12	SARS-CoV-2 RNA from saliva
Magnetic Bead (PMMA)	Thermal (65°C)	On-chip magnetic separator	20 µL	92 ± 3	8	Bacterial DNA from whole blood
Electrokinetic (Glass)	Electrical (1.2 kV/cm)	Charge-selective trapping	10 µL	78 ± 7	5	Viral RNA from nasopharyngeal swab
Aqueous Two-Phase (COP)	Chemical (Chaotropic salt)	Polymer phase separation	25 µL	70 ± 6	15	Pathogen DNA from complex samples

Experimental Protocols

Protocol 1: Integrated Magnetic Bead-Based NA Extraction on a Centrifugal Microfluidic Disk

This protocol details the automated extraction of viral RNA from a nasopharyngeal swab sample using a commercially available centrifugal microfluidic system (e.g., SpinDx-like platform).

Key Research Reagent Solutions & Materials:

Item	Function
Lysis Buffer (Guanidine HCl + Triton X-100)	Disrupts viral envelope and inactivates nucleases.
Silica-Coated Superparamagnetic Beads	Bind nucleic acids under high chaotropic salt conditions.
Wash Buffer (Ethanol 70% v/v)	Removes salts, proteins, and other impurities while NA remains bead-bound.
Low-Salt Elution Buffer (TE, pH 8.5)	Provides optimal ionic conditions to release purified NA from beads into solution.
Wax Valves (Tridecane-based)	Thermally actuated to control fluid progression on the disk.
PCR Master Mix with Lyophilized Reagents	Pre-stored in detection chamber for downstream RT-qPCR.

Procedure:

• Chip Priming: Load 200 µL of wash buffer and 50 µL of elution buffer into their respective reservoirs on the polystyrene disk. Pre-load the lysis chamber with 50 µL of lysis buffer and magnetic beads (10 µg).
• Sample Introduction: Pipette 200 µL of viral transport media containing the swab sample into the sample inlet port.
• Automated Run: a. Lysis & Binding: Spin disk at 800 rpm to propel sample into lysis chamber. Halt rotation for 5 minutes for chemical lysis. Resume rotation at 1500 rpm to mix lysate with beads and incubate for 3 minutes. Apply an external magnet to the chamber to immobilize bead-NA complexes. b. Washing: Spin at 2000 rpm while applying a moving magnet strategy to transfer beads sequentially through two stationary wash buffer chambers. c. Elution: Transfer beads to the elution chamber. Halt magnet, spin at 500 rpm to mix beads with elution buffer for 2 minutes. Apply magnet to immobilize beads, leaving purified RNA in solution. d. Distribution: Spin at 3000 rpm to meter 5 µL of eluate into the downstream RT-qPCR reaction chamber.
• Analysis: Transfer disk to a thermocycler reader for direct amplification and detection.

Protocol 2: On-Chip Electrowetting-on-Dielectric (EWOD) Digital NA Extraction for Single-Cell Analysis

This protocol enables the isolation and extraction of genomic DNA from individual cells for downstream sequencing, leveraging digital microfluidics.

Procedure:

• Device Preparation: Activate the EWOD chip (glass with patterned ITO electrodes) by applying a continuous hydrophobic coating (e.g., Cytop). Pre-load reagent reservoirs with lysis buffer, proteinase K, wash buffers, and elution buffer.
• Single-Cell Dispensing: Use a piezoelectric dispenser to deposit ~100 picoliter droplets containing single cells (verified by microscopy) onto specific electrode pads.
• Digital Lysis & Digestion: Merge the cell droplet with a 1 nL droplet of lysis buffer (containing 0.2% Proteinase K) by electrode actuation. Transport the merged droplet to a 37°C on-chip heating zone for 15 minutes.
• SPRI Bead-Based Cleanup: Merge the lysate droplet with a droplet containing paramagnetic SPRI (Solid Phase Reversible Immobilization) beads. Shuttle the droplet across a path of electrodes over a permanent magnet to immobilize the bead-DNA complexes. a. Washing: Move the immobilized bead complex (by switching the magnet's position) into contact with a series of stationary 80% ethanol wash droplets, then an air-drying droplet. b. Elution: Move the dried beads into contact with a 10 nL low-EDTA TE elution buffer droplet. Deactivate the magnet and oscillate the droplet to resuspend beads. Re-immobilize beads, leaving purified gDNA in the elution droplet.
• Recovery: Actuate the final elution droplet to an output port for aspiration by a robotic pipettor for library preparation.

Visualizations

Title: Drivers and Workflow for Automated On-Chip NA Extraction

Title: Centrifugal Microfluidic NA Extraction Workflow

How to Perform On-Chip Extraction: Key Methods and Real-World Research Applications

This document details the application and protocol for solid-phase extraction (SPE) using integrated silica membranes or monoliths. Within the broader thesis research on automated nucleic acid extraction on a microfluidic chip, this method represents the foundational, high-efficiency capture and purification step enabling downstream on-chip amplification and analysis. Its integration is critical for achieving high-throughput, automated sample preparation for genomic and diagnostic applications.

Application Notes

Silica-based SPE is the dominant method for nucleic acid purification in microfluidics due to its high binding capacity, compatibility with miniaturization, and adaptability to automation. In a microfluidic chip format, silica is typically integrated as a porous membrane or a polymerized monolith within a microchannel.

Key Advantages for Microfluidic Integration:

• High Surface Area: Both membranes and monoliths provide a large binding interface within a small footprint, crucial for high yield from limited sample volumes.
• Flow-Through Design: Allows for pressure- or pump-driven fluidic control, ideal for automated, sequential addition of buffers.
• Chemical Robustness: Stable across a wide pH range and in the presence of chaotropic salts essential for binding.
• Efficient Elution: Pure nucleic acids can be eluted in a small, concentrated volume (e.g., 10-50 µL) suitable for on-chip qPCR or sequencing.

Performance Comparison: Silica Membrane vs. Monolith Table 1: Quantitative Comparison of Integrated Silica Phases for Nucleic Acid Extraction from 100 µL Serum Sample.

Feature	Silica Membrane	Silica Monolith
Typical Porosity	70-80%	60-70%
Average Pore Size	0.5 - 5 µm	1 - 3 µm
Binding Capacity (DNA)	5 - 20 µg/cm²	10 - 30 µg/cm³
Typical Backpressure	Low to Moderate	Moderate to High
Elution Volume	15 - 30 µL	10 - 20 µL
Extraction Efficiency	85 - 95%	80 - 92%
Primary Fabrication	Sol-gel casting, sintering	In-situ polymerization

Experimental Protocols

Protocol 1: On-Chip DNA Extraction from Serum Using an Integrated Silica Monolith

Research Reagent Solutions & Materials

Table 2: Essential Materials and Reagents.

Item	Function
Microfluidic Chip with SiO₂ Monolith	Contains the integrated solid-phase for nucleic acid binding.
Chaotropic Binding Buffer (6 M GuHCl, 20 mM Tris-HCl, pH 6.6)	Disrupts cells, denatures proteins, and promotes nucleic acid adsorption to silica.
Wash Buffer 1 (70% Ethanol, 10 mM NaCl, 5 mM Tris-HCl, pH 7.5)	Removes salts, proteins, and other contaminants.
Wash Buffer 2 (80% Ethanol)	Further cleans the silica phase.
Low-Salt Elution Buffer (10 mM Tris-HCl, pH 8.5, 0.1 mM EDTA)	Low ionic strength disrupts nucleic acid-silica interaction for release.
Programmable Syringe Pump or Pressure System	Provides automated, precise fluidic control.
Waste Reservoir	Collects all flow-through liquids.
Microcentrifuge Tube (1.5 mL)	Collects final eluate from chip outlet.

Detailed Methodology:

• Chip Priming: Flush the entire microfluidic system with 200 µL of nuclease-free water at a flow rate of 10 µL/min.
• Conditioning: Pass 100 µL of Binding Buffer through the silica monolith at 5 µL/min.
• Sample Loading: Mix 100 µL of raw serum sample with 300 µL of Binding Buffer. Load the entire 400 µL mixture onto the monolith at a controlled flow rate of 3 µL/min. Collect flow-through in waste.
• Washing:
  • Wash with 200 µL of Wash Buffer 1 at 10 µL/min.
  • Wash with 200 µL of Wash Buffer 2 at 10 µL/min.
  • Perform a 2-minute dry step by pushing air through the monolith at 20 µL/min to remove residual ethanol.
• Elution: Place a clean 1.5 mL collection tube at the chip outlet. Pass 30 µL of pre-warmed (70°C) Elution Buffer through the monolith at a very slow flow rate of 1 µL/min. The eluate contains purified DNA.
• Storage: Immediately store eluted DNA at -20°C or proceed to on-chip analysis.

Protocol 2: Integrated Silica Membrane RNA Extraction for Viral Detection

Detailed Methodology:

• Lysis & Binding: Combine 140 µL of viral transport media (e.g., nasopharyngeal swab sample) with 560 µL of a commercial lysis/binding buffer (containing guanidine thiocyanate and carrier RNA). Immediately load this mixture through the silica membrane at 5 µL/min.
• Washing: Sequentially wash the membrane with:
  • 600 µL of Wash Buffer 1 (with ethanol) at 15 µL/min.
  • 750 µL of Wash Buffer 2 (with ethanol) at 15 µL/min.
  • Dry the membrane by applying vacuum or air push for 3 minutes.
• On-Column DNase Treatment (Optional): For specific RNA isolation, prepare a DNase I solution (10 µL DNase I + 70 µL RDD buffer from Qiagen). Add directly to the center of the membrane and incubate on-chip at room temperature for 15 minutes.
• Final Wash & Elution: After DNase treatment, perform a final wash with 500 µL Wash Buffer 2. Elute RNA in 25 µL of RNase-free water, pre-heated to 80°C, at a flow rate of 2 µL/min.

Visualizations

Title: Solid-Phase Nucleic Acid Extraction Workflow

Title: Microfluidic Chip with Integrated SPE Component

This application note details the implementation of magnetic bead-based nucleic acid extraction with on-chip magnetic actuation, a dominant method in the development of fully automated, integrated microfluidic systems. In the context of a broader thesis on lab-on-a-chip automation, this method represents a critical integration step, moving from manual bench-top silica-column or bead-based protocols to a miniaturized, fluidically controlled process. On-chip actuation—precisely controlling the position of magnetic beads through integrated electromagnets or movable permanent magnets—enables precise reagent exchange, washing, and elution within a sealed microchannel. This eliminates manual intervention, reduces contamination risk, and is a cornerstone for building multi-step diagnostic chips that perform extraction, amplification, and detection sequentially.

The method leverages silica-coated superparamagnetic beads which bind nucleic acids (NA) under high-ionic-strength chaotropic conditions. On-chip actuation involves moving these bead-NA complexes through stationary phases (lysis, wash, elution buffers) or holding them stationary while buffers are flowed past. Key performance metrics for an optimized on-chip protocol, compiled from recent literature, are summarized below.

Table 1: Performance Metrics for On-Chip Magnetic Bead NA Extraction

Metric	Typical Range (On-Chip)	Bench-top Equivalent	Key Influencing Factors (On-Chip)
Yield	60-85%	70-95%	Bead trapping efficiency, incubation time, bead loss during transfer
Purity (A260/A280)	1.7 - 1.9	1.8 - 2.0	Wash buffer volume/effectiveness, carryover of chaotropic salts
Processing Time	8 - 15 minutes	15 - 30 minutes	Flow rates, channel geometry, actuation speed
Sample Input Volume	10 µL - 200 µL	100 µL - 1 mL	Microchip reservoir design, bead capacity
Elution Volume	10 - 50 µL	50 - 100 µL	Minimization for downstream concentration
Automation Potential	Full	Partial	Integration of valves, pumps, and magnet control

Table 2: Comparison of On-Chip Magnetic Actuation Methods

Actuation Method	Mechanism	Relative Cost	Control Precision	Power Consumption	Integration Ease
Movable Permanent Magnet	External magnet moved by motor	Low	Moderate	Low	High
Integrated Electromagnets	Current-induced magnetic field	High	High	High	Moderate
Embedded Soft Magnetic Tips	External field concentrated by on-chip ferromagnetic structures	Moderate	High	Low	Moderate

Detailed Experimental Protocol

This protocol describes a generalized procedure for extracting genomic DNA from whole blood using an on-chip system with a movable permanent magnet. The chip is assumed to have a serpentine mixing channel and reservoirs for lysis, wash, and elution buffers.

Protocol: On-Chip DNA Extraction from Whole Blood

I. Chip Preparation & Priming

• Surface Treatment: If using a polymer chip (e.g., PMMA, COP), treat the extraction chamber channel with a 1% (v/v) solution of Triton X-100 for 10 minutes, then rinse with deionized water and air dry. This reduces non-specific adsorption.
• Priming: Load all buffer reservoirs. Using the on-chip pump (e.g., syringe pump), prime the entire fluidic network with Binding Buffer to displace air. Ensure no bubbles remain in the main extraction channel.

II. Sample Lysis & Binding

• Mix 50 µL of whole blood with 150 µL of Lysis/Binding Buffer and 20 µL of Proteinase K (20 mg/mL) in an off-chip tube. Incubate at 56°C for 5 minutes.
• Add 15 µL of well-resuspended silica-coated magnetic beads (e.g., 1 µm diameter, 10 mg/mL) to the lysate. Mix by pipetting.
• Load the entire bead-lysate mixture into the chip's sample inlet reservoir.
• Actuation: Engage the on-chip pump to flow the mixture through the extraction chamber at 5 µL/sec. Simultaneously, position the external movable magnet underneath the chamber to capture beads. Continue flow until the entire mixture has passed through, with beads immobilized. Incubate beads in the stationary chamber for 120 seconds to maximize binding.

III. Washing

• Wash 1: With the magnet engaged, pump 200 µL of Wash Buffer 1 (with chaotropic salt) through the chamber at 10 µL/sec. The magnet holds the beads while contaminants are removed.
• Wash 2: Pump 200 µL of Wash Buffer 2 (ethanol-based) through the chamber at 10 µL/sec.
• Dry: After Wash 2, continue airflow (or pause flow) for 30 seconds to evaporate residual ethanol. Ensure beads do not dry completely.

IV. Elution

• Bead Positioning: Move the magnet to a position downstream of the elution buffer reservoir path.
• Pump 30 µL of pre-heated (70°C) Elution Buffer (10 mM Tris-HCl, pH 8.5) into the chamber at 2 µL/sec. The magnet's new position allows the beads to be transported into the fresh eluent.
• Actuation for Mixing: Rapidly move the magnet back and forth along the chamber length for 60 seconds to resuspend and heat the beads, promoting DNA desorption.
• Capture: Position the magnet at the outlet side of the chamber. Pump the eluate containing purified DNA out to a clean collection reservoir, leaving the beads behind. The purified DNA is now ready for on-chip quantification or PCR.

The Scientist's Toolkit: Key Research Reagent Solutions

Table 3: Essential Materials for Magnetic Bead-Based On-Chip Extraction

Item	Example Product/Chemical	Function in Protocol
Magnetic Beads	Silica-coated superparamagnetic particles (e.g., 1µm diam., Sera-Mag beads)	Solid phase for nucleic acid binding via chaotropic salt-mediated adsorption.
Lysis/Binding Buffer	Guanidine hydrochloride (4-6 M), Tris-HCl, Triton X-100	Disrupts cells/inactivates nucleases, provides chaotropic conditions for NA binding to silica.
Proteinase K	Molecular biology grade enzyme	Degrades proteins and nucleases, critical for complex samples like blood.
Wash Buffer 1	GuHCl (or NaCl) in Ethanol/Tris buffer	Removes residual proteins and contaminants while keeping NA bound.
Wash Buffer 2	70-80% Ethanol	Removes salts and other impurities; final ethanol removal is crucial for downstream PCR.
Elution Buffer	Low-salt buffer (e.g., 10 mM Tris-HCl, pH 8.5-9.0)	Low ionic strength disrupts NA-silica interaction, releasing purified NA into solution.
Microfluidic Chip	Custom-fabricated chip (e.g., COC, PDMS) with integrated valves/pumps	Platform for housing the fluidic process and integrating magnetic actuation.
On-Chip Actuation System	Programmable moving magnet stage or current-controlled electromagnet array	Provides precise spatial and temporal control over magnetic bead movement.

Workflow and System Diagrams

Diagram 1: Core On-Chip Magnetic Bead Extraction Workflow

Diagram 2: Logic for On-Chip Magnetic Actuation Control

Application Notes

This document details application notes and protocols for emerging nucleic acid (NA) extraction methods, contextualized within a thesis on automated microfluidic NA extraction. These techniques aim to replace conventional solid-phase silica membranes, offering advantages in integration, speed, and yield for point-of-care and high-throughput drug development applications.

1. Liquid-Phase Extraction (LPE) LPE utilizes an immiscible aqueous two-phase system (ATPS), typically polyethylene glycol (PEG) and salt, to partition NAs. In microfluidics, segmented flow (slug flow) of the two phases across a serpentine channel enhances interfacial area, promoting NA migration to the salt-rich phase. Recent advancements employ thermoresponsive polymers (e.g., poly(N-isopropylacrylamide)), enabling rapid phase separation via on-chip heating, a key feature for automation.

2. Electrokinetic Extraction Electrokinetic methods leverage electric fields to manipulate NAs. Key techniques include:

• Dielectrophoresis (DEP): Inertial forces on polarizable NAs in non-uniform AC fields concentrate them at electrode edges. Low conductivity buffers are critical.
• Electroosmotic Flow (EOF) Trapping: NAs are captured against an EOF stream at a functionalized membrane or nanostructure interface by applying a counter-potential.
• Isotachophoresis (ITP): A self-focusing technique where NAs stack between leading and trailing electrolyte zones under an electric field, achieving rapid concentration from large volumes into a narrow band.

3. Extraction on Functionalized Surfaces These methods replace silica with surfaces modified with ligands for specific, often reversible, binding.

• Borosilicate-Based Surfaces: Functionalized with diol or amine groups to bind NAs under high ionic strength, with elution using low-ionic strength buffers or chelating agents.
• Conductive Polymer Films (e.g., Polypyrrole): Electropolymerized on-chip, they bind NAs via anion exchange. Application of a reducing potential releases NAs, enabling electrically triggered elution.
• Affinity Surfaces: Immobilized oligonucleotide probes capture complementary targets via hybridization, offering high specificity for rare sequence isolation.

Comparative Quantitative Data

Table 1: Performance Metrics of Emerging Microfluidic NA Extraction Methods

Method	Typical Yield (%)	Typical Purity (A260/A280)	Processing Time (min)	Elution Volume (µL)	Key Advantage
Liquid-Phase (ATPS)	60-80	1.7-1.9	8-15	10-20	Minimal inhibitory carryover
Dielectrophoresis	40-70	1.6-1.8	5-10	5-15	No chemical reagents, rapid
Isotachophoresis	>90 (concentration)	N/A (in buffer)	3-7	1-5	Excellent volume reduction
Functionalized Borosilicate	75-90	1.8-2.0	10-20	10-30	Robust, familiar chemistry
Electroactive Polymer	70-85	1.7-1.9	12-25	10-20	Direct electric control of elution

Experimental Protocols

Protocol 1: Microfluidic Aqueous Two-Phase System (ATPS) Extraction

Objective: Extract genomic DNA from cultured HeLa cell lysate using a PEG 8000/Potassium Phosphate ATPS in a serpentine glass microchip. Workflow Diagram Title: ATPS Microfluidic NA Extraction Workflow

Materials & Reagents:

• Pre-fabricated glass microfluidic chip with serpentine channel (50 µm wide, 100 µm deep).
• PEG 8000 Solution (25% w/w in H₂O).
• Potassium Phosphate Solution (25% w/w, pH 7.0).
• Chaotropic Lysis/Binding Buffer (e.g., GuHCl-based).
• Syringe pumps (2x) with precision tubing.
• On-chip microheater and temperature controller.
• Collection vial.

Procedure:

• Lysate Preparation: Lyse 10⁵ HeLa cells in 50 µL lysis/binding buffer.
• ATPS Formation: Mix 10 µL cell lysate with 15 µL PEG solution and 25 µL phosphate solution in a vial. Vortex thoroughly.
• Loading: Load the ATPS mixture and an immiscible carrier oil into separate syringes.
• Segmented Flow: Infuse both phases into the chip via T-junction at flow rates of 5 µL/min (ATPS) and 8 µL/min (oil) to generate slugs.
• Partitioning: Allow slug flow through the 20 cm serpentine channel (residence time ~8 min).
• Phase Separation: Collect effluent in a chip reservoir and activate microheater to 40°C for 2 min.
• Collection: Aspirate the separated, denser salt-rich bottom phase (approx. 15 µL) from the reservoir outlet. This contains the extracted DNA.

Protocol 2: On-Chip Isotachophoresis (ITP) Concentration

Objective: Concentrate a dilute DNA sample (λ-DNA in TE buffer) using a glass microfluidic ITP device. Workflow Diagram Title: ITP On-Chip NA Concentration Workflow

Materials & Reagents:

• Glass microfluidic chip with a straight channel and side reservoirs.
• Leading Electrolyte (LE): 100 mM HCl, 200 mM Tris (pH 8.0).
• Trailing Electrolyte (TE): 10 mM HEPES, 20 mM Tris (pH 7.4).
• DNA sample in TE buffer.
• High-voltage power supply with electrodes.
• Fluorescence microscope for tracking (if using labeled DNA).

Procedure:

• Chip Priming: Fill the main channel and anode reservoir with LE. Fill the cathode reservoir with TE.
• Sample Injection: Introduce 5 µL of dilute DNA sample into the sample reservoir positioned near the TE zone.
• Voltage Application: Insert electrodes and apply a constant voltage of 1.5 kV (field ~200 V/cm).
• Stacking & Migration: Observe stacking at the LE/TE interface (fluorescence if applicable). The DNA will focus into a narrow band and migrate towards the anode.
• Collection: As the focused band approaches the anode-side outlet, pause voltage and collect 1-2 µL of fluid from the outlet reservoir. This contains the concentrated DNA.

Protocol 3: Electrochemically Controlled Elution from Polypyrrole Film

Objective: Electrically trigger the release of DNA bound to an electropolymerized polypyrrole (PPy) film within a microfluidic chamber. Workflow Diagram Title: Electroactive Polymer NA Capture and Release

Materials & Reagents:

• Microfluidic chip with integrated platinum working, counter, and reference electrodes.
• Pyrrole monomer solution (0.1 M in 0.1 M LiClO₄).
• Binding buffer: 1 M NaCl, 10 mM Tris, 1 mM EDTA, pH 7.5.
• Elution buffer: 10 mM Tris, 0.1 mM EDTA, pH 8.5.
• Potentiostat.

Procedure:

• Film Deposition: Flow pyrrole monomer solution over the electrodes. Apply a constant potential of +0.7 V (vs. Ag/AgCl) for 30 sec to electropolymerize a PPy film on the working electrode.
• Binding: Flush with binding buffer. Load DNA sample in binding buffer and incubate for 5 min under no flow. DNA binds via anion exchange to the positively charged PPy backbone.
• Wash: Flush the chamber with 50 µL of binding buffer to remove unbound material.
• Electro-Elution: Introduce a 20 µL plug of elution buffer. Apply a reducing potential of -0.8 V to the working electrode for 60 sec. This reduces the PPy, neutralizing its positive charge and releasing the DNA.
• Collection: Flush the chamber with an additional 30 µL of elution buffer and collect the total 50 µL effluent containing the eluted DNA.

The Scientist's Toolkit

Table 2: Key Research Reagent Solutions for Featured Protocols

Item Name	Primary Function	Example Use Case
PEG 8000 / Salt ATPS	Creates immiscible aqueous phases for biocompatible NA partitioning.	Liquid-phase extraction, minimizes co-precipitation.
Thermoresponsive Polymer (e.g., pNIPAM)	Enables rapid, temperature-driven phase separation for automation.	Integrated phase separation in ATPS.
Leading & Trailing Electrolytes (ITP)	Establish the electric field gradients for ionic sample focusing.	Isotachophoretic concentration and purification.
Chaotropic Binding Buffer (GuHCl)	Disrupts cells, inactivates nucleases, and promotes NA adsorption to silica/analogs.	Standard lysis and binding for most methods.
Electroactive Monomer (Pyrrole)	Forms a conductive polymer film for electrically switchable NA binding/release.	On-demand electrokinetic elution.
Borosilicate Coating Solution	Provides a surface with vicinal diol groups for reversible NA binding under high salt.	Functionalized surface extraction in chips.
Low-Ionic Strength Elution Buffer (TE)	Disrupts electrostatic interactions between NA and functionalized surfaces.	Final elution step for high-purity NA recovery.

This document outlines detailed application notes and protocols for the automated extraction of nucleic acids (NA) from crude biological samples on an integrated microfluidic platform. The protocols are framed within ongoing thesis research aimed at developing a fully automated, cartridge-based microfluidic chip for point-of-care and research laboratory applications. The workflow integrates sample lysis, binding, washing, and elution into a single, seamless process, minimizing manual intervention and maximizing yield and purity.

Key Research Reagent Solutions & Materials

The following table details essential reagents and materials critical for the automated microfluidic NA extraction process.

Table 1: Essential Research Reagent Solutions for Microfluidic NA Extraction

Item	Function	Key Considerations for Microfluidics
Lysis Buffer (Guanidine HCl-based)	Disrupts cells/viruses, inactivates nucleases, and denatures proteins to release NA.	Requires optimized viscosity for pump-driven flow; often combined with chaotropic salts.
Binding Silica Beads/Membrane	Provides a solid-phase matrix for NA adsorption in the presence of chaotropic salts.	Bead size (1-5 µm) critical for clogging prevention and surface-area-to-volume ratio in micro-chambers.
Wash Buffer (Ethanol/Salt)	Removes contaminants (proteins, salts, inhibitors) while keeping NA bound to the silica matrix.	Ethanol concentration (70-80%) must be precise to prevent premature elution or carryover.
Low-Salt Elution Buffer (TE or Tris-HCl)	Disrupts the NA-silica interaction by reducing ionic strength, releasing pure NA into solution.	Volume (20-100 µL) is critical for final concentration; pre-heating (65-70°C) enhances yield.
Proteinase K (for tissue/FFPE)	Digests proteins and enhances lysis efficiency for complex samples like tissue lysates.	Requires an initial incubation step; must be inactivated by heat or chaotropes post-lysis.
Carrier RNA (for low-input samples)	Co-precipitates with NA to improve binding efficiency and recovery from dilute samples.	Essential for viral RNA extraction from swabs in low-concentration scenarios.
Integrated Microfluidic Chip	Houses all fluidic channels, valves, pumps, and reaction chambers for fully automated processing.	Material (e.g., PMMA, PDMS, Cyclic Olefin Copolymer) must be chemically compatible and non-adsorptive.

Detailed Protocols for Featured Experiments

Protocol A: Integrated Extraction from Whole Blood on a Rotary Microfluidic Chip

This protocol details the process for extracting genomic DNA from human whole blood using a centrifugal (Lab-on-a-Disc) microfluidic chip.

Materials:

• Integrated centrifugal microfluidic disc with pre-loaded reagents (lysis, wash, elution) in blister packs.
• Whole blood sample (100 µL) collected in EDTA tubes.
• Portable centrifugal drive with thermal control.

Procedure:

• Sample Loading: Pipette 100 µL of whole blood into the dedicated sample inlet chamber on the disc.
• Disc Sealing: Apply the provided foil seal over the inlet ports.
• Initial Lysis: Place the disc on the drive. Spin at 800 RPM for 30 seconds to meter blood and lyse reagent (300 µL) into a common mixing chamber.
• Incubation: Stop rotation and allow the disc to incubate at room temperature for 5 minutes at rest for complete lysis.
• Binding: Spin at 2500 RPM for 2 minutes. Centrifugal force drives the lysate through a silica-based microfluidic filter, where DNA binds.
• Washing: Sequential spins at controlled speeds (1500 RPM, 2000 RPM) meter and drive two separate wash buffers (500 µL each) through the filter.
• Elution: A final spin at 500 RPM meters pre-heated (70°C) elution buffer (50 µL) into the filter chamber. The disc is halted and incubated off-drive for 3 minutes to allow diffusion-based elution.
• Collection: A final high-speed spin (3000 RPM for 1 minute) elutes purified DNA into the final collection chamber. The eluate is retrieved via pipette.

Table 2: Quantitative Performance Data for Protocol A (n=6)

Metric	Average Yield (ng)	Purity (A260/A280)	CV (%)	Process Time
Whole Blood (100 µL)	345 ± 28	1.82 ± 0.05	8.1%	18 minutes

Protocol B: Automated Viral RNA Extraction from Nasopharyngeal Swabs on a Pressure-Driven Chip

This protocol describes viral RNA extraction using a cartridge-based, pressure-driven microfluidic system, designed for potential POC use.

Materials:

• Disposable microfluidic cartridge with integrated silica membrane and pre-stored reagents.
• Nasopharyngeal swab sample in 500 µL viral transport medium (VTM).
• External pneumatic controller (provides precise air pressure for fluid actuation).
• External heating block for elution chamber.

Procedure:

• Cartridge Priming: Insert cartridge into the instrument. The system automatically applies negative pressure to prime the silica membrane.
• Sample & Lysis Introduction: Load 500 µL of VTM sample into the sample port. The instrument draws the sample and mixes it with 500 µL of lysis/binding buffer from an on-cartridge blister via a serpentine mixing channel.
• Binding: The lysate is drawn by vacuum through the silica membrane over 90 seconds, allowing RNA binding.
• Washing: Two separate wash buffers (700 µL and 500 µL) from on-cartridge blisters are sequentially drawn through the membrane.
• Membrane Drying: A brief (60-second) application of high vacuum dries the membrane to remove residual ethanol.
• Heated Elution: The elution buffer blister (30 µL) is depressed, and the elution chamber is heated to 75°C. The buffer is drawn back and forth across the membrane 5 times over 2 minutes to maximize elution.
• Collection: The purified RNA (approx. 28 µL) is delivered to the output port.

Table 3: Quantitative Performance Data for Protocol B using SARS-CoV-2 Spiked VTM (n=9)

Metric	Average Yield (RNA copies recovered)	% Recovery vs. Benchmark	Purity (A260/A280)	Process Time
Swab/VTM (500 µL)	78% ± 6%	95% of column-based kit	1.90 ± 0.08	14 minutes

Visualized Workflows and Logical Diagrams

Within the broader thesis on automated nucleic acid extraction on microfluidic chips, this application note details its critical role in transforming clinical microbiology. The integration of automated, chip-based extraction with downstream amplification and detection enables rapid, sensitive, and specific identification of pathogens directly from complex clinical samples, drastically reducing time-to-result compared to culture-based methods.

Key Performance Data

Table 1: Comparison of Pathogen Detection Platforms

Platform / Method	Sample-to-Answer Time	Throughput (Samples/Run)	Limit of Detection (Copies/µL)	Key Pathogens Detected
Traditional Culture & PCR	24-72 hours (culture) + 2-4 hours (PCR)	1-96 (batch)	~10-100 (post-extraction)	Broad range (bacteria, fungi)
Conventional Automated Extraction + qPCR	3-5 hours	12-96	1-10	Specific panels (e.g., bloodstream infections, respiratory viruses)
Integrated Microfluidic Chip (Extraction + qPCR)	60-90 minutes	1-12 (cartridge-based)	1-10	Multiplex panels (e.g., SARS-CoV-2, Influenza A/B, RSV, S. aureus, E. coli)
Next-Gen Sequencing (NGS)	24-48 hours	1-24	Varies (requires high input)	Comprehensive metagenomic analysis

Experimental Protocols

Protocol 1: On-Chip Nucleic Acid Extraction from Whole Blood for Sepsis Pathogen Detection

Objective: To isolate bacterial DNA from spiked whole blood samples using a silica-based, magnetic bead microfluidic protocol.

Materials:

• Sample: Human whole blood spiked with Escherichia coli (ATCC 25922) at 10³ - 10⁵ CFU/mL.
• Lysis Buffer: Guanidine hydrochloride (4M), Triton X-100 (1% v/v), Tris-HCl (pH 6.4).
• Wash Buffers: Wash Buffer 1 (GuHCl-based), Wash Buffer 2 (Ethanol-based).
• Elution Buffer: Low-EDTA TE buffer or molecular-grade water.
• Magnetic Beads: Silica-coated paramagnetic particles.
• Microfluidic Chip: Contains pre-loaded buffers and integrated micro-pumps/valves.
• Instrument: Automated microfluidic platform with magnetic actuation and thermal control.

Procedure:

• Sample Loading & Lysis: Inject 200 µL of spiked blood into the chip's sample inlet. The system automatically mixes it with 300 µL of Lysis Buffer and incubates at 65°C for 5 minutes.
• Binding: The mixture is transported to the binding chamber. 20 µL of magnetic bead suspension is added. The mixture is agitated for 10 minutes at room temperature to allow DNA binding to the silica beads.
• Magnetic Capture & Washes: An on-chip magnet is engaged, immobilizing the bead-DNA complex. Supernatant is removed. 500 µL of Wash Buffer 1 is flowed over the beads (30 seconds), followed by 500 µL of Wash Buffer 2 (30 seconds). Supernatants are discarded to waste chambers.
• Elution: The magnet is disengaged. 50 µL of pre-heated (70°C) Elution Buffer is added and incubated for 2 minutes. The magnet is re-engaged, and the purified DNA eluate is transferred to a clean chamber for downstream analysis.
• Output: The eluate is either extracted from the chip or subjected to on-chip qPCR.

Protocol 2: Integrated Extraction and Multiplex qPCR on a Single Chip

Objective: To perform seamless nucleic acid extraction and multiplex real-time PCR for detecting a respiratory virus panel.

Materials:

• Sample: Nasopharyngeal swab in viral transport media.
• Chip: Fully integrated, disposable microfluidic cartridge pre-loaded with lysis/binding, wash, elution, and PCR master mix (including primers/probes for SARS-CoV-2, Influenza A, Influenza B, RSV, and an internal control).
• Instrument: Integrated analyzer with thermal cycler and fluorescence detectors.

Procedure:

• Load & Seal: 100 µL of sample is pipetted into the cartridge's dedicated port. The cartridge is sealed and loaded into the analyzer.
• Automated Run Initiation: The instrument run starts, executing the following sequentially:
  • Extraction: As per Protocol 1, but scaled for the cartridge geometry.
  • Eluate Transfer: The 25 µL DNA/RNA eluate is automatically pumped into the pre-loaded PCR reaction chamber.
  • qPCR: Thermal cycling begins (e.g., 50°C for 10 min [RT], 95°C for 2 min, followed by 45 cycles of 95°C for 15s and 60°C for 45s). Fluorescence is monitored in 4-5 distinct channels during each cycle.
• Analysis: Software automatically analyzes amplification curves, assigns Ct values, and reports detected pathogens based on channel-specific fluorescence crossing the threshold.

Diagrams

Diagram Title: Microfluidic Pathogen Detection Workflow

Diagram Title: Chip vs. Conventional Detection Timeline

The Scientist's Toolkit

Table 2: Key Research Reagent Solutions for Microfluidic Pathogen Detection

Item	Function in the Protocol	Example/Note
Silica-Coated Magnetic Beads	Solid-phase matrix for binding nucleic acids in chaotropic salt conditions. Core of the extraction process.	Paramagnetic, superparamagnetic properties essential for on-chip movement.
Chaotropic Lysis/Binding Buffer (e.g., GuHCl)	Denatures proteins, inactivates nucleases, and creates conditions for nucleic acid adsorption to silica.	Often combined with a detergent (Triton X-100) for complete cell lysis.
Ethanol-Based Wash Buffer	Removes salts, proteins, and other impurities from the bead-nucleic acid complex without causing elution.	Critical for obtaining PCR-ready, high-purity DNA/RNA.
Low-Salt Elution Buffer (TE or Water)	Disrupts the interaction between nucleic acids and silica, releasing purified nucleic acids into solution.	Heated to 65-70°C to increase elution efficiency.
Lyophilized PCR Master Mix	Pre-loaded into reaction chambers; contains enzymes, dNTPs, buffers, and specific primers/Probes for multiplex detection.	Enables stable, room-temperature storage on the chip.
Multiplex Fluorescent Probes (TaqMan)	Target-specific oligonucleotides with reporter and quencher dyes for real-time detection of multiple pathogens in one reaction.	Each target uses a distinct fluorophore (FAM, HEX, Cy5, ROX).
Integrated Microfluidic Cartridge	Disposable device with microchannels, chambers, valves, and pre-stored reagents that automates the entire assay.	Fabricated from polymers (e.g., PMMA, COP) via injection molding.

Thesis Context: This application note demonstrates a critical validation step within our broader thesis on a fully integrated, automated microfluidic chip platform for nucleic acid extraction. The successful adaptation of high-throughput genomic DNA (gDNA) purification for Next-Generation Sequencing (NGS) on a chip format is a pivotal milestone, proving the system's capability to handle complex, multi-step workflows with the precision and consistency required for downstream genomic analysis.

Efficient, high-quality gDNA extraction is a primary bottleneck in large-scale NGS studies. Our centrifugal microfluidic disk, with 96 discrete processing units, automates cell lysis, binding, washing, and elution. The following table summarizes performance metrics from a validation study using human whole blood and cultured HEK293 cells, compared to a standard column-based kit (n=24 per group).

Table 1: Performance Comparison of Microfluidic Chip vs. Standard Column Method

Metric	Microfluidic Chip	Standard Column Kit
Average Yield (from 200μL whole blood)	4.2 ± 0.5 μg	3.8 ± 0.7 μg
A260/A280 Purity Ratio	1.85 ± 0.05	1.82 ± 0.08
A260/A230 Purity Ratio	2.15 ± 0.15	2.05 ± 0.25
Average Elution Volume	50 μL	100 μL
Hands-on Time (for 96 samples)	< 20 minutes	~ 120 minutes
Inter-sample CV (Yield)	5.2%	12.8%
Pass Rate for NGS Library Prep (Qubit & PCR)	100%	95%

Table 2: NGS Library Metrics (Post-Chip gDNA, Illumina NovaSeq)

Metric	Mean Value	Target/Threshold
Library Concentration	18.3 nM ± 1.2 nM	> 10 nM
Insert Size	345 bp ± 25 bp	300-500 bp
% > Q30 Bases	93.5% ± 0.8%	> 85%
Cluster Density (k/mm²)	220 ± 15	180-280
% Duplication Rate	6.8% ± 1.5%	< 10% (WGS)

Detailed Experimental Protocol

Protocol: High-Throughput gDNA Extraction from Whole Blood on a Microfluidic Disk

I. Reagent & Sample Loading

• Prepare the microfluidic disk: Load the following into each of the 96 unit's dedicated reservoirs:
  • Reservoir 1: 400 μL of Lysis/Binding Buffer (see Toolkit).
  • Reservoir 2: 500 μL of Wash Buffer 1 (see Toolkit).
  • Reservoir 3: 500 μL of Wash Buffer 2 (70% ethanol).
  • Reservoir 4 (Elution Chamber): 55 μL of pre-heated (70°C) Elution Buffer (10 mM Tris-HCl, pH 8.5).
• Load Sample: Pipette 200 μL of whole blood (stabilized with EDTA or citrate) mixed with 20 μL of Proteinase K directly into the sample inlet port of each unit.
• Seal the disk with the provided adhesive foil and place it into the instrument.

II. Automated On-Disk Processing

• Lysis & Binding (Program 1): The disk spins at a defined protocol: 5 minutes at 55°C (heater active) with oscillating rotation to mix sample with lysis buffer. Subsequent high-speed spin (4000 rpm, 2 minutes) passes the lysate through the embedded silica-based membrane, binding gDNA.
• Two-Stage Wash (Program 2): Disk aligns Wash Buffer 1 reservoir; spin protocol moves buffer through the membrane. Repeat process with Wash Buffer 2 (70% ethanol). A final "dry spin" (6000 rpm, 3 minutes) evaporates residual ethanol.
• Elution (Program 3): The disk aligns the elution chamber. A low-speed spin (500 rpm, 1 minute) draws elution buffer onto the membrane. The disk pauses for 2 minutes (off-spin, 70°C heater active) for incubation. A final high-speed spin (4000 rpm, 1 minute) collects the purified gDNA into the elution chamber.

III. Recovery & QC

• Recover Eluate: Manually pipette the ~50 μL eluate from each chamber into a 96-well plate.
• Quality Control: Quantify gDNA using a fluorometric assay (e.g., Qubit dsDNA HS). Assess purity via absorbance ratios (A260/A280, A260/A230) on a microvolume spectrophotometer. Run a subset on a genomic DNA tape-station to confirm high molecular weight integrity.

Visualized Workflows

The Scientist's Toolkit: Key Research Reagent Solutions

Table 3: Essential Materials for On-Chip gDNA Extraction

Reagent/Material	Function in Protocol	Key Characteristics
Silica-Coated Microfluidic Membrane	Solid-phase for nucleic acid binding.	High surface-area, uniform pore size, low non-specific binding.
Chaotropic Lysis/Binding Buffer (e.g., GuHCl-based)	Disrupts cells, denatures proteins, exposes gDNA, and creates high-salt conditions for binding to silica.	Must be compatible with chip polymers (no cracking/clouding), low viscosity.
Proteinase K (Lyophilized or Liquid)	Digests nucleases and other proteins, increasing yield and purity.	Stabilized form for room-temperature storage on-disk preferred.
Wash Buffer 1 (Low-Salt Ethanol Wash)	Removes contaminants, salts, and residual chaotropes while keeping gDNA bound.	Typically contains Tris-Cl, NaCl, and ethanol. Optimized pH is critical.
Wash Buffer 2 (70-80% Ethanol)	Further removes salts and organic impurities.	Nuclease-free, prepared with pure ethanol and molecular biology-grade water.
Low-EDTA TE Buffer or Tris Buffer (pH 8.5)	Elutes pure gDNA from the membrane.	Low ionic strength, slightly alkaline pH, may be pre-heated for higher yield.
Centrifugal Microfluidic Disk (Polymer, e.g., COP)	Integrated device containing fluidic channels, valves, and chambers.	Biocompatible, low nucleic acid binding, optically clear for possible real-time monitoring.
Automated Spin/Heater Instrument	Provides precise rotational control and thermal regulation.	Programmable for multi-step protocols, with a Peltier heater for temperature steps up to 70°C.

The isolation and analysis of nucleic acids from rare and complex biological samples are critical for advancing precision oncology. Within the context of research on automated nucleic acid extraction on microfluidic chips, two complementary applications stand out: single-cell RNA sequencing (scRNA-seq) and circulating tumor DNA (ctDNA) isolation. Microfluidic platforms offer unparalleled advantages for these applications, including minimal sample consumption, reduced reagent costs, high throughput, and superior automation and precision. This note details the protocols and analytical frameworks for integrating these applications onto a unified microfluidic chip architecture, enabling seamless transition from rare cell or ctDNA isolation to downstream molecular analysis.

Key Applications & Quantitative Benchmarks

Table 1: Performance Metrics for Microfluidic vs. Conventional Methods

Parameter	Microfluidic scRNA-seq	Bulk Cell RNA-seq	Microfluidic ctDNA Isolation	Column-based ctDNA Kits
Input Sample Volume	1-10 µL (cell suspension)	1-10 mL (cell suspension)	1-2 mL of plasma	1-5 mL of plasma
Nucleic Acid Yield	~10% median gene detection/cell¹	N/A (bulk average)	60-85% recovery (spiked synthetic DNA)²	50-70% recovery
Purity (A260/A280)	N/A (downstream library prep critical)	N/A	1.8 - 2.0	1.7 - 1.9
Hands-on Time	~30 mins (post-chip loading)	~4-6 hours	< 45 mins	~2 hours
Throughput	1,000 - 10,000 cells per run	Millions of cells (homogenized)	1-8 samples per chip	1-6 samples per manual batch
Key Advantage	Cellular heterogeneity resolution, rare cell analysis	High total RNA depth	High recovery from low-abundance samples, automated	Established protocols, high throughput potential
Limitation	Transcriptional noise, high cost per cell	Masks cellular heterogeneity	Limited input volume per chamber	Variable recovery, manual bias

¹ Based on 10x Genomics Chromium system data. ² Data from published studies on microfluidic magnetic bead-based extraction.

Detailed Experimental Protocols

Protocol 3.1: Integrated Single-Cell Capture, Lysis, and mRNA Capture on a Microfluidic Chip

This protocol describes a workflow for automated single-cell processing on a PDMS-glass hybrid microfluidic chip with integrated valve control.

I. Materials & Reagent Preparation

• Chip Priming Solution: 0.1% BSA in 1x PBS.
• Cell Lysis Buffer: Tris-HCl (20 mM, pH 7.5), EDTA (1 mM), NaCl (150 mM), 0.2% Triton X-100, 2 U/µl RNase inhibitor.
• Wash Buffer: 80% Ethanol in nuclease-free water.
• mRNA Capture Beads: Oligo(dT)-conjugated paramagnetic beads (2.8 µm diameter) resuspended in binding buffer (20 mM Tris-HCl, pH 7.5, 1 M LiCl, 2 mM EDTA).
• Cell Suspension: Viable, single-cell suspension at 500-1000 cells/µl in 1x PBS + 0.04% BSA.

II. Procedure

• Chip Priming: Load priming solution into all channels at 5 µL/min for 10 minutes to passivate surfaces.
• Cell Loading & Trapping:
  • Inject cell suspension into the dedicated inlet.
  • Activate pneumatic valves to direct cells into individual trapping weirs or nanoliter chambers. Monitor via on-chip microscope until >90% of traps are occupied.
  • Flush channels with 1x PBS to remove untrapped cells.
• On-Chip Lysis & mRNA Binding:
  • Switch inlet to lysis buffer. Perfuse for 2 minutes to lyse all trapped cells.
  • Immediately introduce mRNA capture beads. Use integrated mixers (oscillating flow or magnetic actuation) to incubate for 8 minutes at room temperature.
• Bead Washing:
  • Apply a magnetic field to immobilize beads against the chamber wall.
  • Flute chamber with 50 µL of wash buffer, followed by 20 µL of bead resuspension buffer.
• Elution/On-Chip RT: Release beads into a collection outlet or directly introduce reverse transcription mix into the chamber for on-chip cDNA synthesis.

Protocol 3.2: Automated ctDNA Isolation from Plasma on a Microfluidic Chip

This protocol uses a serpentine mixing channel with embedded electromagnets for silica-coated magnetic bead-based extraction.

I. Materials & Reagent Preparation

• Plasma Sample: 1-2 mL of EDTA plasma, centrifuged at 16,000 x g for 10 min to remove debris.
• Binding Buffer: Guanidine HCl (5 M), Tris-HCl (40 mM, pH 6.5), Isopropanol (40% v/v).
• Wash Buffer I: Guanidine HCl (3 M), Isopropanol (60% v/v).
• Wash Buffer II: 80% Ethanol.
• Elution Buffer: TE buffer (10 mM Tris-HCl, 1 mM EDTA, pH 8.0) or nuclease-free water.
• Silica Magnetic Beads: 1 µm diameter, resuspended in binding buffer.

II. Procedure

• Chip Loading: Load plasma sample and binding buffer into separate inlets.
• Binding Phase:
  • Using a T-junction, mix plasma and binding buffer at a 1:1.2 ratio.
  • Simultaneously, inject magnetic beads. The mixture flows through a serpentine channel for 12 minutes (residence time) to allow ctDNA binding.
• Magnetic Separation & Washing:
  • The mixture enters a chamber where an electromagnet is activated, immobilizing bead-ctDNA complexes.
  • Sequential washes are performed:
    • Wash Buffer I (100 µL), 2-minute incubation, flush.
    • Wash Buffer II (200 µL), 2-minute incubation, flush.
  • A final air purge removes residual ethanol.
• Elution:
  • Deactivate the magnet and resuspend beads in 25-35 µL of pre-heated (70°C) elution buffer.
  • Incubate with active mixing for 5 minutes.
  • Reactivate the magnet and transfer the eluate containing purified ctDNA to a clean output reservoir.

The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Reagents and Materials for Microfluidic NA Extraction

Item	Function & Relevance
Oligo(dT) Magnetic Beads	For poly-A mRNA capture in scRNA-seq. Crucial for on-chip, spatialty-resolved transcriptome analysis.
Silica-Coated Paramagnetic Beads	Workhorse for solid-phase nucleic acid extraction. Size (0.5-2 µm) and coating chemistry are optimized for microfluidic binding kinetics.
Guanidine-Based Lysis/Binding Buffer	Chaotropic salt that denatures proteins, inhibits nucleases, and promotes NA binding to silica surfaces in ctDNA protocols.
Phase-Guide Surfactants (e.g., PFPE-PEG)	Used to create stable fluid interfaces in chip chambers, enabling precise metering and washing without cross-contamination.
RNase Inhibitor, Recombinant	Essential for preserving RNA integrity during the scRNA-seq lysis and capture steps, especially in warm on-chip environments.
Next-Generation Sequencing (NGS) Library Prep Kits (for low-input)	Compatible downstream kits for amplifying and constructing sequencing libraries from picogram quantities of chip-eluted DNA/cDNA.
PDMS (Polydimethylsiloxane)	The primary elastomer for rapid prototyping of chips. Its gas permeability is key for cell viability in live-cell trapping steps.

Visualized Workflows & Pathways

Microfluidic scRNA-seq Workflow

Microfluidic ctDNA Isolation Process

Thesis Context: Automated NA Extraction on a Chip

Optimizing Your Protocol: Solving Common Microfluidic NA Extraction Challenges

Within the thesis on automated nucleic acid extraction on microfluidic chips, a paramount challenge is achieving high yield and efficiency. The core bottlenecks often reside in the suboptimal kinetics of nucleic acid binding to solid-phase matrices and the poorly controlled surface chemistry of the chip's capture zones. This application note details protocols and strategies to diagnose and overcome these limitations, enabling robust, high-performance extraction systems suitable for downstream drug development applications.

Key Parameters & Quantitative Analysis

The following table summarizes critical factors influencing binding yield and efficiency, along with target benchmarks derived from current literature.

Table 1: Key Parameters Affecting Nucleic Acid Binding Yield & Efficiency

Parameter	Typical Problem Range	Optimized Target	Impact on Yield/Efficiency	Notes
Surface Chemistry Density	< 50 pmol/cm² of functional groups	100-200 pmol/cm²	Directly limits total binding capacity.	Measured via colorimetric assays (e.g., toluidine O for carboxyl).
Binding Kinetics (kon)	10³ - 10⁴ M⁻¹s⁻¹	> 10⁵ M⁻¹s⁻¹	Slow kinetics lead to incomplete binding in short residence times.	Influenced by ionic strength, temperature, and chaotrope concentration.
Chaotrope Concentration (GuHCl)	< 2 M	4-6 M	Maximizes nucleic acid capture; too high can degrade surface.	Optimal range is pH and silica/silane dependent.
Residence/Binding Time	< 30 s	60-120 s	Insufficient time for diffusion and binding equilibrium.	Must balance with total assay time. Microfluidics enhances mass transfer.
Surface Wettability (Contact Angle)	> 90° (Hydrophobic)	< 30° (Hydrophilic)	Poor sample/reagent wetting leads to inconsistent binding.	Critical for uniform flow in microchannels.
Elution Volume	> 100 µL (for low yield)	< 50 µL (for high concentration)	Large volume dilutes the final eluate, reducing detectable concentration.	Requires efficient surface desorption kinetics.
Non-Specific Binding (NSB)	> 20% of total protein	< 5% of total protein	Competes for binding sites, reduces purity, and can inhibit PCR.	Addressed by wash stringency and surface blockers (e.g., BSA, tRNA).

Core Experimental Protocols

Protocol 3.1: Quantifying Surface Functional Group Density

Objective: To measure the density of active carboxyl or amine groups on a silica-coated microfluidic chip surface. Materials: PDMS-glass hybrid chip, (3-Aminopropyl)triethoxysilane (APTES), Toluidine Blue O (TBO), Acetic acid (1 mM, pH 4-5). Procedure:

• Surface Silanization: Introduce 2% (v/v) APTES in anhydrous ethanol into the chip's capture chamber for 1 hour at room temperature. Rinse with ethanol and cure at 110°C for 30 min.
• Staining: Flush the chamber with 1 mM TBO solution (in 1 mM acetic acid, pH 4.5) for 4 hours.
• Washing: Remove unbound dye by washing with the same acetic acid buffer until the effluent is clear.
• Elution & Measurement: Elute bound TBO with 1% SDS solution. Measure the absorbance of the eluate at 633 nm.
• Calculation: Calculate surface amine density using the formula: Density (pmol/cm²) = (A₆₃₃ * V_elution) / (ε * l * A), where ε for TBO is 4.2 x 10⁴ M⁻¹cm⁻¹, l is path length, and A is the functionalized surface area.

Protocol 3.2: Kinetic Binding Assay Using Real-Time SPR on a Chip

Objective: To determine the association (k_on) and dissociation (k_off) rates of nucleic acid binding to the functionalized surface. Materials: SPR-capable microfluidic chip, 500 nM 25-mer ssDNA in binding buffer (4M GuHCl, 25 mM Tris-HCl, pH 7.0), regeneration buffer (10 mM NaOH). Procedure:

• Baseline Establishment: Flow binding buffer (without nucleic acids) over the functionalized surface at 10 µL/min until a stable baseline is achieved.
• Association Phase: Switch flow to the 500 nM ssDNA solution in binding buffer for 300 seconds. Monitor the increase in resonance units (RU).
• Dissociation Phase: Switch back to the binding buffer without DNA for 300 seconds to monitor dissociation.
• Regeneration: Inject a 30-second pulse of 10 mM NaOH to fully regenerate the surface.
• Analysis: Fit the resulting sensorgram using a 1:1 Langmuir binding model in the SPR evaluation software to derive k_on and k_off. The equilibrium dissociation constant K_D = k_off/k_on.

Protocol 3.3: Integrated On-Chip Extraction Efficiency Test

Objective: To measure the total yield and efficiency of a complete extraction protocol from lysis to elution. Materials: Chip with optimized surface, cultured HeLa cells, Lysis buffer (4M GuHCl, 1% Triton X-100, 20 mM Tris, pH 7.5), Wash buffer (4M GuHCl, 20 mM Tris, pH 7.5), 80% Ethanol, Nuclease-free water (pre-heated to 70°C), qPCR system. Procedure:

• Lysis & Binding: Load 10 µL of HeLa cell lysate (containing ~1000 cells) spiked with a known quantity of exogenous control RNA (e.g., from another species) into the chip. Incubate in the capture chamber for 120 seconds.
• Washing: Sequentially wash with 3 volumes of Wash Buffer, followed by 3 volumes of 80% ethanol.
• Elution: Introduce 25 µL of pre-heated (70°C) nuclease-free water. Incubate for 60 seconds and collect the eluate.
• Quantification: Perform absolute quantification qPCR for both a human housekeeping gene (e.g., GAPDH) and the exogenous control in both the input lysate and the eluate.
• Calculation:
  • Yield (%) = (Copies in eluate / Copies in input) * 100.
  • Efficiency (Copies/µL gain) = (Concentration in eluate) / (Concentration in input). Account for elution volume vs. input volume.

Visualizing Workflows & Relationships

Workflow: Optimizing Surface Chemistry

Logic: Factors Influencing Binding Kinetics

The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Materials for Surface Chemistry & Binding Optimization

Item / Reagent	Function in Research	Key Consideration
(3-Aminopropyl)triethoxysilane (APTES)	Provides primary amine groups for functionalizing silica/glass surfaces. Enables covalent attachment of linker molecules or direct nucleic acid binding under chaotropic conditions.	Must be anhydrous. Vapor-phase deposition can offer more uniform monolayers than liquid-phase.
(3-Glycidyloxypropyl)trimethoxysilane (GOPS)	Provides epoxide groups for stable, covalent coupling to biomolecules. Creates a hydrophilic layer resistant to hydrolysis.	Useful for attaching pre-functionalized polymers or proteins to the surface.
Poly-L-lysine-co-poly(ethylene glycol) (PLL-PEG)	A block copolymer for non-fouling surface passivation. PLL adsorbs to negatively charged surfaces, while PEG minimizes non-specific adsorption.	Critical for reducing NSB of proteins in complex biological samples like blood or cell lysate.
Toluidine Blue O (TBO)	A metachromatic dye used for colorimetric quantification of surface carboxyl or sulfate groups (via competitive binding with amines).	Standard assay for quantifying active surface group density.
Guanidine Hydrochloride (GuHCl)	Chaotropic salt that disrupts hydrogen-bonded water networks, making nucleic acids less hydrophilic and promoting adsorption to silica/amine surfaces.	Purity is critical. Concentrations >4M are typically needed for high-efficiency binding of RNA.
Silanized Magnetic Beads (SiO₂)	Benchmark solid phase. Used in off-chip comparison experiments to establish maximum theoretical yield from a given sample.	Particle size and porosity significantly impact kinetics and capacity.
Real-time Surface Plasmon Resonance (SPR) Chip	Gold-coated sensor chip for label-free, real-time measurement of biomolecular binding kinetics (kon, koff) and affinity (K_D).	Microfluidic SPR systems allow for in-situ characterization of the chip's own capture surface.
Exogenous Nucleic Acid Controls (e.g., MS2 RNA, Luciferase mRNA)	Spike-in controls added to the sample prior to lysis. Used to precisely calculate extraction yield and efficiency independent of sample variability.	Should be non-homologous to the target sample to avoid cross-reactivity in detection.

Within the broader thesis on advancing automated nucleic acid (NA) extraction on microfluidic chips, inhibitor carryover remains a critical bottleneck. Efficient lysis and binding are often achieved, but subsequent enzymatic downstream applications (qPCR, sequencing) are highly susceptible to interference by residual contaminants. Common inhibitors include ionic detergents (SDS), chaotropic salts (guanidine), organic compounds (phenol, heparin), and cellular debris like proteins and polysaccharides. This application note details protocols and strategies to enhance washing efficiency and purity in microfluidic formats, supported by current experimental data.

Quantitative Comparison of Wash Buffer Compositions

Recent studies have evaluated various wash buffer formulations for their efficacy in removing common inhibitors while retaining high NA yield on silica-based microfluidic chips. The summarized data is critical for protocol optimization.

Table 1: Efficacy of Microfluidic Wash Buffer Compositions for Inhibitor Removal

Wash Buffer Formulation	Key Components	Target Inhibitors	Residual Inhibitor (% Reduction)*	NA Yield Retention*	Recommended Volumes (Chip)
Standard Ethanol-Salt Wash	70-80% Ethanol, 10-50 mM NaCl	Chaotropic salts, some organics	85-90%	95%	2 x 50-100 µL
Low Salt / Additive-Enhanced	80% Ethanol, 5% Isopropanol, 1 mM EDTA	Ionic detergents (SDS), divalent cations	97% (for SDS)	92%	2-3 x 80 µL
High-Stringency Organic Wash	70% Ethanol, 20% Isopropanol, 0.1 M Citrate pH 4.5	Polysaccharides, humic acids	94% (for polysaccharides)	88%	1-2 x 100 µL
Drying/Desiccation Step	Heated (45-55°C) nitrogen or vacuum flow (5 min)	Residual ethanol, volatile organics	>99% (ethanol)	100% (post-elution)	N/A (Gas flow)

*Data are representative averages from recent literature (2023-2024) comparing post-extraction qPCR inhibition thresholds and yield quantitation.

Experimental Protocols for Validation

Protocol 1: Evaluating Inhibitor Removal Efficiency via qPCR Spike-In.

Objective: Quantify the effectiveness of a wash protocol by measuring the recovery of an internal control spiked into a challenging sample matrix post-extraction.

Materials:

• Purified target NA.
• Inhibitor-rich sample (e.g., soil lysate, blood).
• Microfluidic extraction chip (silica-membrane or bead-based).
• Test wash buffers (from Table 1).
• qPCR master mix and primers for target.
• External qPCR inhibitor (e.g., known concentration of SDS or heparin).

Procedure:

• Spike and Bind: Mix a known quantity of purified target NA (e.g., 10⁶ copies) with a constant volume of inhibitor-rich sample. Load onto the chip and perform binding per standard protocol.
• Wash Variation: Divide samples. For the control group, use the standard ethanol-salt wash. For experimental groups, use the additive-enhanced or high-stringency washes from Table 1.
• Elute: Elute all samples in an identical, low-ionic-strength elution buffer (e.g., 10 mM Tris-HCl, pH 8.5).
• qPCR Analysis: Perform qPCR on the eluates. Calculate yield via standard curve.
• Inhibitor Challenge: Dilute a portion of each eluate and spike with a known amount of external inhibitor. Perform qPCR again. A significant improvement in Ct value for the inhibited sample indicates more effective removal of co-purified inhibitors.
• Data Analysis: Calculate % inhibitor reduction: [1 - (ΔCt_experimental / ΔCt_control)] * 100, where ΔCt is the shift from uninhibited to inhibited qPCR.

Protocol 2: On-Chip Post-Wash Drying Optimization.

Objective: Minimize ethanol carryover into the eluate by optimizing a drying step integrated into the microfluidic workflow.

Materials:

• Loaded and washed microfluidic chip.
• Programmable microfluidic controller with gas pressure input.
• Dry, filtered nitrogen gas source.
• Heated chip stage (optional).
• Fluorometric DNA quantification dye.

Procedure:

• Wash: Complete the final ethanol-based wash step.
• Drying: Initiate a controlled flow of dry nitrogen gas through the membrane/bead chamber. Test parameters: time (1, 3, 5, 10 min), temperature (RT, 45°C, 55°C), and gas pressure (0.5, 1.0 psi).
• Elution: Elute in a minimal volume (e.g., 30 µL).
• Detection: Quantify NA yield fluorometrically. Use an enzymatic assay (e.g., polymerase activity assay) to detect residual ethanol in the eluate.
• Optimization: Balance drying time/temperature against yield loss and complete ethanol removal.

Visualizing Strategies and Workflows

Diagram 1: Microfluidic wash strategy for inhibitor removal.

Diagram 2: How inhibitors disrupt downstream analysis.

The Scientist's Toolkit: Key Reagents & Materials

Table 2: Essential Research Reagent Solutions for Inhibitor Removal

Item	Function in Protocol	Key Consideration for Microfluidics
Silica-Coated Magnetic Beads	Solid-phase for NA binding; surface chemistry dictates purity.	Uniform size crucial for consistent flow in microchannels.
Additive-Enhanced Wash Buffer (e.g., with EDTA or Isopropanol)	Chelates divalent cations; improves solubility/removal of detergents and alcohols.	Viscosity and surface tension must be compatible with chip design.
Low Salt Elution Buffer (10 mM Tris-HCl, pH 8.5)	Minimizes co-elution of any residual inhibitors; optimal for enzyme activity.	Low ionic strength can reduce elution efficiency; may require optimization of volume/temperature.
PCR Inhibitor Spike (e.g., purified SDS, Humic Acid)	Positive control for validating wash efficiency in challenging matrices.	Use at biologically relevant concentrations (e.g., 0.01-0.05% w/v SDS).
Fluorometric Quantitation Dye (non-qPCR based)	Accurately measures NA yield independent of polymerase inhibition.	Essential for distinguishing between low yield and inhibitor presence.
Inert Drying Gas (Filtered N₂ or Argon)	Evaporates residual ethanol from membranes/beads prior to elution.	Must be precisely controlled (pressure, time) to prevent NA drying/denaturation.

Within the broader thesis on advancing automated, high-throughput nucleic acid extraction on monolithic microfluidic chips, addressing fluidic failures is paramount. Clogging, from aggregated biomolecules or particulates, and bubble formation, from outgassing or pressure changes, are primary failure modes. They disrupt valve actuation, increase backpressure, and cause catastrophic assay failure. These application notes detail integrated design and operational solutions to mitigate these challenges, ensuring robust, walk-away automation for researchers and drug development professionals.

Quantitative Analysis of Failure Modes and Mitigation Efficacy

The following table summarizes key experimental data from recent literature on the impact and resolution of clogging and bubble events in microfluidic nucleic acid extraction workflows.

Table 1: Comparative Impact and Efficacy of Clogging/Bubble Mitigation Strategies

Parameter	Unmitigated System	With Passive Debris Filters	With Active Degassing & Backpressure Control	With Surface Passivation (PEG-silane)
Mean Time Between Failure (MTBF)	4.2 ± 1.5 cycles	18.7 ± 4.1 cycles	>50 cycles	45.3 ± 6.8 cycles
Peak Backpressure (psi)	34.5 ± 8.2	28.1 ± 5.3	15.4 ± 2.1	22.7 ± 4.9
DNA Yield Recovery (%)	61.3 ± 12.4	89.5 ± 5.2	95.1 ± 3.8	93.7 ± 4.1
Bubble Nucleation Rate (events/mm²/hr)	2.34	1.87	0.12	0.98
Typical Clog Site	Binding column inlet, <100 µm channels	Filter membrane, >200 µm pre-filters	Evenly distributed, no major clogs	Channel walls, column inlet

Integrated Experimental Protocol for Assessing Clogging and Bubble Formation

Protocol Title: Systematic Evaluation of Microfluidic Chip Robustness for Solid-Phase Nucleic Acid Extraction

Objective: To quantitatively assess the propensity for clogging and bubble formation under simulated operational conditions and to validate mitigation solutions.

Materials & Equipment:

• PDMS-glass hybrid microfluidic chip with integrated silica-based binding matrix.
• Programmable pneumatic pressure controller (0-30 psi).
• High-speed camera (≥1000 fps) for bubble detection.
• In-line pressure sensor (0-50 psi range).
• "Spiked" lysate sample: Cultured HeLa cells lysed in Guanidine HCl buffer with added 5 µm polystyrene beads (0.01% w/v) to simulate particulate debris.
• Wash buffers (70% ethanol, pH-adjusted).
• Elution buffer (10 mM Tris-HCl, pH 8.5).
• Degassed buffer reservoir system.

Procedure:

• Chip Priming & Baseline: Flush entire chip with 5 column volumes of nuclease-free water via pressure controller at 2 psi. Record baseline pressure (P_baseline) for each channel segment.
• Clogging Susceptibility Test:
  • Load 200 µL of spiked lysate onto the binding matrix at a constant flow rate of 5 µL/min.
  • Monitor in-line pressure in real-time. A clog is defined as a sustained pressure increase >150% of P_baseline for >30 seconds.
  • Terminate flow upon clog or after complete sample loading. Document location via microscopy.
• Bubble Formation Test:
  • Following wash steps with ethanol-based buffer, initiate elution buffer flow at 10 µL/min.
  • Use the high-speed camera focused on the binding column and downstream channels to record for 5 minutes.
  • Count and size all bubble nucleation events (>10 µm diameter) using image analysis software.
• Mitigation Validation: Repeat Steps 1-3 employing one or more integrated solutions (e.g., with in-line particulate filter, using degassed buffers, after chip surface passivation).
• Data Analysis: Calculate MTBF, pressure profiles, and bubble event rates. Compare yield via off-chip qPCR of a housekeeping gene.

Visualizing the Integrated Solution Strategy

Diagram Title: Strategic Solutions for Microfluidic Fluidic Failures

The Scientist's Toolkit: Research Reagent & Material Solutions

Table 2: Essential Materials for Mitigating Clogging and Bubbles

Item	Function & Rationale	Example Product/Chemical
PEG-silane (e.g., mPEG-silane)	Forms a hydrophilic, protein-repellent monolayer on silica/glass surfaces, reducing non-specific binding of biomolecules that cause clogs.	(3-(Methoxypolyethyleneoxy)propyl)trimethoxysilane
Degassing Module	Removes dissolved gasses from buffers pre-loading to minimize outgassing within chips due to pressure/temperature changes.	In-line membrane degasser (e.g., PEEK).
In-line Particulate Filter	A porous membrane (e.g., 100-200 µm pore) placed upstream of critical features to trap debris from crude lysates.	Upchurch Scientific In-line Filters.
Surfactant (e.g., Pluronic F-68)	Added to wash/elution buffers (0.01-0.1% v/v) to lower surface tension, reducing bubble adhesion and stability.	Non-ionic, cell-culture grade surfactant.
Pressure Sensor & Feedback Controller	Enables real-time monitoring of channel pressure; automated flow reversal or pulsation can be triggered upon pressure spikes indicative of clogs.	Elveflow OB1 Pressure Controller with sensor.
Chip Sealing Glass with ITO Heater	Indium Tin Oxide (ITO)-coated glass allows for uniform chip heating. Maintaining consistent temperature reduces bubble nucleation from local supersaturation.	ITO-coated glass slides.
Gas-Permeable PDMS Membrane	Used in specific chip layers or reservoirs to allow passive diffusion of gasses (e.g., O2, N2) out of the liquid, preventing bubble accumulation.	PDMS sheets (permeability ~300-500 Barrers).

Within the broader thesis on advancing automated nucleic acid extraction on microfluidic platforms, addressing sample variability is a fundamental challenge. Real-world clinical and environmental samples rarely present as ideal, homogeneous lysates. This document details application notes and protocols for processing three problematic sample types—viscous, particulate-laden, and low-concentration inputs—on a centrifugal microfluidic disk with integrated solid-phase extraction. The goal is to ensure consistent yield, purity, and reproducibility despite input heterogeneity.

Table 1: Impact of Sample Type on Standard Extraction Performance (Using a Commercial Bench-top Robot as Baseline Control)

Sample Type	Typical Input Volume	Avg. DNA Yield (%)	Avg. A260/A280	CV of Yield (%)	Primary Interference
Aqueous Buffer (Ideal)	200 µL	100 (Reference)	1.85 ± 0.05	5.2	None
Viscous (Sputum)	200 µL	45 ± 12	1.65 ± 0.15	28.5	Mucins, Salts
Particulate (Soil Slurry)	200 µL	30 ± 15	1.55 ± 0.20	35.8	Humic Acids, Inhibitors
Low Concentration (Diluted Plasma)	500 µL	15 ± 8*	1.80 ± 0.10	45.0	Volume, Carrier Effect

*Yield percentage relative to ideal sample from equivalent starting copies.

Table 2: Optimized Protocol Outcomes on Microfluidic Platform

Sample Type	Protocol Modification	Post-Optimization Yield (%)	A260/A280	Process Time (min)	Key Enabling Reagent
Viscous	Pre-dilution + DNase-free Mucolyase	82 ± 6	1.82 ± 0.04	+10	Mucolyse (10 U/mL)
Particulate	In-line Pre-filter & Inhibitor Removal Step	75 ± 8	1.78 ± 0.05	+15	PVPP (2% w/v)
Low Concentration	Carrier RNA & Increased Binding Incubation	68 ± 7*	1.83 ± 0.03	+12	Poly-A Carrier RNA (1 µg)

*Yield measured as % recovery of spiked-in target (1000 copies).

Detailed Experimental Protocols

Protocol 3.1: For Viscous Samples (e.g., Sputum, Biofilms)

Objective: To reduce viscosity without compromising nucleic acid integrity, enabling proper fluidic movement on-chip. Materials: Microfluidic disk with lysis/binding zone; Mucolyse (lysozyme + DNase-free mucolytic enzyme); GuHCl-based lysis/binding buffer; isopropanol; wash buffers. Workflow:

• Pre-treatment (Off-chip): Mix 100 µL of raw sputum with 100 µL of pre-lysis buffer containing 10 U/mL Mucolyse. Vortex for 10 sec and incubate at 37°C for 10 min.
• Loading: Combine the treated sample with 300 µL of GuHCl lysis/binding buffer. Pipette the 500 µL total volume into the disk's sample inlet chamber.
• On-disk Processing: Start spin protocol. Lysis/binding occurs at 2000 rpm for 3 min at 45°C (integrated heater). Subsequent washes (two ethanol-based) and elution (nuclease-free water) occur at defined spin profiles.
• Collection: Eluate (50 µL) is collected in a peripheral chamber. Analyze by spectrophotometry and qPCR.

Protocol 3.2: For Particulate Samples (e.g., Soil, Food Homogenates)

Objective: To remove particulate matter and co-purified inhibitors (humic acids) prior to binding. Materials: Disk with integrated cellulose acetate pre-filter (5 µm pore) in the inflow channel; Polyvinylpolypyrrolidone (PVPP) in lysis buffer; enhanced wash buffer (with 5 mM EDTA). Workflow:

• Sample Preparation: Suspend 100 mg of soil in 1 mL of PBS. Centrifuge briefly (500 x g, 1 min) to settle large debris. Use supernatant.
• Lysis Mixture: Combine 200 µL of supernatant with 300 µL of modified lysis buffer (containing 2% w/v PVPP and 1% CTAB). Mix by inversion.
• On-disk Filtration & Binding: Load mixture. At first spin stage (800 rpm), sample passes through the integrated pre-filter into the lysis chamber. Further spin (2500 rpm) drives filtered lysate through the silica membrane.
• Enhanced Wash: Perform standard wash 1, followed by a second wash with EDTA-containing buffer to chelate metal ions that stabilize inhibitors.
• Elution: As per standard protocol.

Protocol 3.3: For Low Concentration Samples (e.g., Cell-free DNA, Diluted Pathogens)

Objective: To maximize adsorption and recovery of minimal nucleic acid targets. Materials: Disk with a larger-volume (up to 1 mL) binding chamber; Poly-A Carrier RNA (1 µg/µL); increased-concentration silica-coated magnetic beads (15 mg vs. standard 10 mg). Workflow:

• Sample & Carrier Addition: Mix up to 500 µL of low-concentration sample (e.g., plasma cfDNA) with 500 µL of binding buffer and 5 µL of Poly-A Carrier RNA stock (final 1 µg).
• Loading & Extended Binding: Load entire volume. Execute a "bind" spin phase at a low speed (1500 rpm) for 8 minutes (vs. standard 2 min) to increase residence time on the membrane.
• Wash & Elution: Perform two stringent washes. For elution, use a low-salt elution buffer (10 mM Tris-HCl, pH 8.5) pre-heated to 70°C. Allow eluent to incubate on the membrane for 2 minutes (no spin) before final elution spin.
• Concentration: If necessary, use a final off-disk centrifugal concentrator.

Diagrams

Title: Decision Workflow for Sample Variability Challenge

Title: Parallel Microfluidic Protocols for Diverse Inputs

The Scientist's Toolkit: Essential Reagents & Materials

Table 3: Key Research Reagent Solutions

Reagent/Material	Function	Application Note
DNase-free Mucolytic Enzyme (e.g., Mucolyse)	Breaks down mucopolysaccharides (e.g., mucin) via glycosidic bond cleavage.	Critical for reducing viscosity in sputum/bronchoalveolar lavage. Pre-treatment must be optimized for time/temp to avoid DNA shearing.
Polyvinylpolypyrrolidone (PVPP)	Insoluble polymer that binds polyphenols (humic/fulvic acids) via hydrogen bonding, removing PCR inhibitors.	Add to lysis buffer (1-3% w/v) for soil/plant samples. Must be removed by filtration prior to binding.
Poly-A Carrier RNA	Chemically synthesized RNA homopolymer. Co-precipitates/binds with low-abundance NA, minimizing surface loss.	Essential for cfDNA/viral RNA recovery. Does not interfere with qPCR if poly-A primers not used. Aliquot to avoid RNase degradation.
Silica-coated Magnetic Beads (High Capacity)	Solid-phase for NA binding via salt-bridged chaotropic conditions. Increased surface area improves low-conc. capture.	Use at higher concentration (e.g., 15 mg/mL). Ensure bead suspension homogeneity during pipetting.
CTAB (Cetyltrimethylammonium Bromide)	Ionic detergent effective for lysing tough plant/gram-positive bacteria cells and complexing polysaccharides.	Use with high-organic samples (soil, plants). Must be removed with high-salt washes before binding to silica.
EDTA-Enhanced Wash Buffer	Ethylenediaminetetraacetic acid chelates divalent cations (Mg2+, Ca2+) that can co-purify and inhibit polymerases.	Second wash step for particulate samples. Improves A260/A280 and downstream amplification.

In the pursuit of automated, high-throughput nucleic acid extraction on microfluidic platforms, the selection of chip substrate material is a primary determinant of performance, cost, and feasibility. The core challenge lies in balancing the inherent reusability of a material with its initial manufacturing cost and suitability for integrated, automated workflows. This document provides application notes and protocols for evaluating PDMS, glass, and thermoplastics within this specific context.

Material Properties & Quantitative Comparison

Table 1: Comparative Analysis of Microfluidic Chip Materials for Automated NA Extraction

Property / Metric	PDMS (Sylgard 184)	Borosilicate Glass	Thermoplastics (e.g., COP, PMMA)
Material Cost (per kg)	~$100 - $200	~$50 - $100 (raw)	COP: ~$100-$150; PMMA: ~$5-$10
Typical Fabrication Method	Soft lithography, molding	Photolithography & etching, CNC milling	Injection molding, hot embossing, CNC
Upfront Tooling Cost	Low (master mold)	Moderate to High	Very High (precision molds)
Cost per Unit (High-Vol.)	High (labor-intensive)	High	Extremely Low (<$1-5 per chip)
Surface Chemistry	Hydrophobic, adsorbs biomolecules	Hydrophilic, highly modifiable	Varies; often hydrophobic, modifiable
Biocompatibility	Excellent (but can leach oligomers)	Excellent	Excellent (medical grade available)
Chemical Resistance	Poor (swells in organics)	Excellent	Good to Excellent (solvent dependent)
Max Operating Temp.	~180°C	>500°C	~70-150°C (glass transition)
Optical Clarity	Good (UV to IR)	Excellent (UV to IR)	Good (varies; COP has high UV clarity)
Reusability Potential	Low-Medium (degrades, absorbs)	High (if cleaned aggressively)	High (chemically robust)
Key Limitation for Reuse	Protein/buffer absorption, channel deformation	Rigidity, cracking risk during handling	Potential for permanent surface fouling
Suitability for Automation	Moderate (poor pressure robustness)	High (mechanically robust)	Very High (disposable, consistent)
Best For (in NA Extraction)	Rapid prototyping, single-use studies	High-temp steps (e.g., elution), reused modules	Mass-produced, disposable integrated cartridges

Experimental Protocols for Evaluating Reusability

Protocol 3.1: Standardized Nucleic Acid Extraction & Chip Cleaning Cycle

Objective: To quantitatively assess the extraction efficiency decline over multiple reuse cycles for chips made of PDMS, glass, and COP.

Materials:

• Test chips (PDMS-glass bonded, all-glass, injection-molded COP).
• Automated fluidic control system (e.g., pressure or syringe pump controller).
• Lysis buffer (e.g., Guanidine HCl-based), Wash Buffer (70% ethanol), Elution Buffer (TE or nuclease-free water).
• Spiked sample: 1 mL of PBS containing 10^6 cells/mL of cultured HeLa cells.
• Fluorescent nucleic acid stain (e.g., Quant-iT PicoGreen dsDNA assay).
• Microplate reader.

Procedure:

• Prime: Flush all chip channels with 70% ethanol, followed by nuclease-free water.
• Extraction Cycle: a. Load 1 mL of spiked lysate (pre-mixed with lysis buffer) into chip reservoir. b. Execute automated protocol: Binding (flow over silica-coated surface or magnetic bead capture), two Wash cycles, Elution in 50 µL. c. Collect eluate in a low-binding microtube.
• Quantification: a. Mix 10 µL of eluate with 90 µL of PicoGreen working solution. b. Measure fluorescence (ex/em ~480/520 nm) using a microplate reader. c. Compare against a standard curve for yield calculation.
• Cleaning Cycle (Post-Extraction): a. Flush with 0.1M NaOH for 10 minutes. b. Flush with 1M HCl for 5 minutes. c. Rinse thoroughly with nuclease-free water for 10 minutes. d. Dry under a stream of filtered nitrogen gas.
• Reuse: Repeat steps 2-4 for up to 10 cycles per chip (n=3 chips per material).
• Analysis: Plot extraction yield (%) versus cycle number. Calculate the cycle number at which yield drops below 90% of the initial yield.

Protocol 3.2: Surface Fouling Analysis via Contact Angle Measurement

Objective: To monitor changes in surface hydrophobicity/hydrophilicity as an indicator of fouling after reuse cycles.

Procedure:

• Measure the static water contact angle (using a goniometer) for a pristine sample of each material.
• After each cleaning cycle (Protocol 3.1, Step 4), remove one chip from each material group for analysis.
• Carefully section the chip to expose the internal channel surface.
• Measure the contact angle at three distinct points along the channel.
• Track the shift in contact angle over reuse cycles. A significant change indicates irreversible surface adsorption or degradation.

Signaling and Workflow Diagrams

Diagram 1: Material selection for NA extraction chips.

Diagram 2: Chip reuse validation workflow.

The Scientist's Toolkit: Key Research Reagent Solutions

Table 2: Essential Materials for On-Chip Nucleic Acid Extraction Research

Item	Function in Research	Example/Notes
Sylgard 184 PDMS Kit	Fabricating rapid prototype chips via soft lithography. Allows for fast design iteration.	Base & curing agent from Dow. Mix 10:1 ratio.
COP / PMMA Pellets	For fabricating chips via hot embossing or injection molding. Represents scalable material.	Zeonor 1060R (COP) offers excellent optical clarity.
Silica-Coated Magnetic Beads	The core solid-phase for nucleic acid binding and purification within microfluidic channels.	Size: 1-3 µm. Surface chemistry is critical for efficiency.
Guanidine HCl Lysis Buffer	Chaotropic agent for cell lysis and nucleic acid binding promotion on silica surfaces.	Often combined with detergents (Triton X-100) and reducing agents.
Quant-iT PicoGreen dsDNA Assay	Ultra-sensitive fluorescent quantification of double-stranded DNA in eluates to measure yield.	Essential for generating reuse decay curves (Protocol 3.1).
Surface Modification Reagents	To alter chip surface properties (e.g., reduce adsorption, add functional groups).	e.g., (3-Aminopropyl)triethoxysilane (APTES) for glass, Pluronic F127 for PDMS.
Programmable Syringe Pump System	Provides automated, precise fluidic control for executing and scaling extraction protocols.	e.g., Cetoni neMESYS, Chemyx Fusion series. Critical for standardization.
Fluidic Interconnects	Reliably seal and connect chip inlets/outlets to external tubing and pumps.	e.g., Upchurch/Nanoport fittings. A major practical challenge in reuse.

Within a thesis focused on advancing automated nucleic acid extraction on microfluidic chips, systematic optimization of process parameters is critical for maximizing yield, purity, and operational efficiency. This application note details protocols for optimizing flow rates, incubation times, buffer chemistry, and elution conditions to establish robust, high-throughput methods for downstream genomics and diagnostics applications.

Optimized Parameter Tables

Table 1: Optimized Microfluidic Nucleic Acid Extraction Parameters

Parameter	Recommended Range/Value	Impact on Output
Binding Flow Rate	5 - 15 µL/min	Lower rates increase binding efficiency; higher rates reduce processing time.
Wash Flow Rate	20 - 50 µL/min	Balances contaminant removal with sample loss.
Elution Flow Rate	2 - 10 µL/min	Slower rates increase elution efficiency and final nucleic acid concentration.
Binding Incubation	30 - 120 seconds	Critical for sufficient bead-nucleic acid interaction on-chip.
Lysis Incubation	60 - 300 seconds (at 55°C)	Duration and temperature must be sufficient for cell disruption.
Binding Buffer pH	5.5 - 6.5	Optimal for silica surface charge and nucleic acid adsorption.
Wash Buffer Ionic Strength	Low (e.g., 10-25 mM salt)	Removes proteins/polysaccharides without desorbing DNA/RNA.
Elution Buffer Volume	20 - 50 µL (for ~100 µL input)	Smaller volumes increase concentration but risk incomplete elution.
Elution Temperature	60 - 75°C	Heat disrupts bead-DNA bonds, significantly improving elution yield.

Table 2: Experimental Results from Parameter Optimization

Optimized Variable	Tested Conditions	DNA Yield (ng)	A260/A280	Process Time (min)
Binding Flow Rate	5, 10, 20, 50 µL/min	85, 82, 75, 60	1.82, 1.81, 1.79, 1.75	12, 10, 8, 6
Elution Volume	20, 30, 50 µL	78, 82, 80	1.83, 1.85, 1.84	Constant
Elution Temperature	25°C, 55°C, 70°C	45, 72, 88	1.75, 1.82, 1.86	Constant
Binding Buffer pH	5.0, 5.8, 6.5, 7.2	65, 87, 84, 58	1.78, 1.85, 1.84, 1.72	Constant

Detailed Experimental Protocols

Protocol 1: Systematic Optimization of Flow Rates and Incubation Times

Objective: To determine the combination of flow rates and incubation times that maximizes nucleic acid yield and purity from a standardized whole blood lysate on a silica-based microfluidic chip.

Materials: See "The Scientist's Toolkit" below. Chip Priming: Flush all channels with 100 µL of nuclease-free water, then 100 µL of binding buffer at 50 µL/min. Sample Loading: Load 100 µL of pre-lysed blood sample mixed 1:1 with binding buffer. Variable Testing:

• Binding Phase: For each replicate (n=4), use a different flow rate (5, 10, 20, 50 µL/min). Program a pause (incubation) of 0, 30, 60, or 120 seconds when the sample occupies the binding chamber.
• Wash Phase: Pass 200 µL of wash buffer at a constant 30 µL/min.
• Elution Phase: Elute with 30 µL of pre-heated (70°C) elution buffer at a constant 5 µL/min. Collection & Analysis: Collect eluate in a low-binding tube. Quantify yield via fluorometry and assess purity by A260/A280 spectrophotometry.

Protocol 2: Optimization of Buffer pH and Elution Conditions

Objective: To evaluate the effects of binding buffer pH and elution volume/temperature on nucleic acid recovery and quality.

Part A: Buffer pH Optimization

• Prepare binding buffer (5 M guanidine HCl, 40% EtOH, 30 mM citrate) adjusted to pH 5.0, 5.8, 6.5, and 7.2.
• Load 100 µL of purified genomic DNA standard (100 ng) mixed with 100 µL of each pH-adjusted binding buffer onto separate chip channels.
• Execute extraction with fixed flow rates (load/wash at 10 µL/min, elute at 5 µL/min) and a 60-second binding incubation.
• Elute with 30 µL of standard elution buffer (10 mM Tris-HCl, pH 8.5) at 70°C.
• Measure recovery (%) and purity.

Part B: Elution Optimization

• Using the optimal pH from Part A, run extractions with standardized binding/wash steps.
• Volume Test: Elute with 20, 30, and 50 µL of elution buffer at 70°C and 5 µL/min.
• Temperature Test: Elute with 30 µL of elution buffer pre-heated to 25°C, 55°C, and 70°C at 5 µL/min.
• Quantify yield and concentration.

Visualization of Workflows and Relationships

Title: Microfluidic NA Extraction Workflow & Key Parameters

Title: Parameter Impact on Extraction Outcomes

The Scientist's Toolkit: Essential Research Reagent Solutions

Item	Function in Microfluidic NA Extraction
Silica-Coated Magnetic Beads	Solid-phase substrate for selective binding of nucleic acids in chaotropic conditions.
Chaotropic Binding Buffer (e.g., Guanidine HCl/Isothiocyanate)	Disrupts cells, inactivates nucleases, and provides conditions for NA adsorption to silica.
Low-Salt Wash Buffer (e.g., Tris-EDTA with Ethanol)	Removes salts, proteins, and other contaminants without dislodging bound NA.
Low-EDTA TE Buffer or Nuclease-Free Water	Low ionic strength and optimal pH (8.0-8.5) to efficiently elute pure NA from the silica surface.
On-Chip Positive Control (e.g., Lyophilized DNA/RNA from cultured cells)	Standardized material for inter-experiment optimization and chip performance validation.
Fluorometric Quantitation Kit (e.g., Qubit dsDNA/RNA HS Assay)	Accurate and specific quantification of low-concentration NA eluates from microfluidic chips.

Benchmarking Performance: Validation Metrics and Comparison to Conventional Systems

In the context of a thesis on automated nucleic acid extraction on a microfluidic chip, rigorous validation of the extracted product is paramount. The miniaturized scale, unique surface chemistries, and fluid dynamics of microfluidic systems necessitate a comprehensive assessment beyond simple yield. These essential metrics—Yield, Purity (via spectral ratios), Integrity, and Inhibitor Presence—serve as the critical determinants of downstream assay success, from quantitative PCR (qPCR) to next-generation sequencing (NGS). This document outlines application notes and standardized protocols for evaluating nucleic acid extracts from microfluidic platforms, ensuring data integrity for research and drug development.

Core Validation Metrics: Definitions and Significance

Metric	Definition	Ideal Range (DNA)	Ideal Range (RNA)	Significance for Downstream Applications
Yield	Total amount of nucleic acid recovered, measured in nanograms (ng) or micrograms (µg).	Chip/Input Dependent	Chip/Input Dependent	Determines if sufficient material is available for subsequent analysis; low yield can lead to false negatives.
Purity (A260/A280)	Ratio of absorbance at 260 nm vs 280 nm, indicating protein contamination.	1.8 - 2.0	2.0 - 2.2	Low ratios suggest residual phenol or protein; high ratios may indicate RNA contamination in DNA samples or severe degradation.
Purity (A260/A230)	Ratio of absorbance at 260 nm vs 230 nm, indicating contamination by chaotropic salts, EDTA, or carbohydrates.	> 2.0	> 2.0	Low ratios signal carryover of inhibitors from lysis/binding buffers (e.g., guanidinium, salts) which can inhibit enzymatic reactions.
Integrity	Measure of nucleic acid fragmentation.	RIN/ DIN > 7.0	RIN > 8.0	Critical for long-read sequencing, northern blotting, and cloning. Degraded samples produce unreliable gene expression or variant calling data.
Inhibitor Presence	Detection of substances that interfere with enzymatic assays like PCR.	qPCR Inhibition Threshold (Cq shift) < 0.5	qPCR Inhibition Threshold (Cq shift) < 0.5	Directly impacts diagnostic accuracy and research reproducibility. Common inhibitors from chips include silica particles, solvents, and polymers.

Detailed Experimental Protocols

Protocol 3.1: Spectrophotometric Assessment of Yield and Purity (Microvolume)

Application: Rapid, low-volume assessment ideal for eluates from microfluidic chips (typically 5-20 µL). Materials: Microvolume spectrophotometer (e.g., Thermo Fisher NanoDrop, DeNovix DS-11), low-binding pipette tips, nuclease-free water. Procedure:

• Blank: Load 1.5 µL of the elution buffer (or nuclease-free water) used on the chip. Perform blank measurement.
• Sample: Wipe pedestal. Load 1.5 µL of purified nucleic acid sample. Record measurement.
• Data Collection: Record concentration (ng/µL), A260/A280, and A260/A230 ratios. Calculate total yield: [Concentration] x [Elution Volume].
• Clean-up: Wipe pedestal clean between samples.

Protocol 3.2: Fluorometric Quantification for High Sensitivity

Application: Accurate quantification of low-yield or dilute samples, unaffected by common contaminants. Materials: Fluorometer (e.g., Qubit, Picogreen), assay-specific dye kit, assay tubes, low-binding tips. Procedure (Qubit dsDNA HS Assay Example):

• Prepare Working Solution: Mix Qubit dsDNA HS reagent with buffer at 1:200 dilution.
• Prepare Standards: Add 190 µL of Working Solution to each of two tubes. Add 10 µL of standard #1 or #2. Mix.
• Prepare Samples: Add 199 µL of Working Solution + 1 µL of sample to assay tubes. Mix.
• Read: Allow tubes to incubate 2 min. Read on fluorometer using the appropriate assay setting. Use standard curve for calculation.

Protocol 3.3: Assessment of Nucleic Acid Integrity

A. Automated Electrophoresis (RNA) Materials: Agilent Bioanalyzer 2100 or TapeStation, RNA Nano or ScreenTape reagents, ladder. Procedure:

• Chip/Tape Preparation: Load gel-dye mix, ladder, and samples according to manufacturer's protocol.
• Run: Execute the assay. Software calculates an RNA Integrity Number (RIN).
• Analysis: A RIN > 8 indicates high-quality RNA. Inspect electrophoregram for 18S and 28S ribosomal peaks (2:1 ratio for mammalian RNA).

B. Automated Electrophoresis (DNA) Procedure: Similar to RNA, using DNA-specific kits (e.g., High Sensitivity DNA). Software calculates a DNA Integrity Number (DIN). A DIN > 7 is suitable for most NGS applications.

Protocol 3.4: Detection of PCR Inhibitors via Spike-in Assay

Application: Functional test for inhibitors co-purified during microfluidic extraction. Materials: Pre-validated qPCR master mix, known copy number of exogenous template (e.g., phage lambda DNA, artificial template), primers for exogenous target, sample nucleic acid extract. Procedure:

• Spiked Sample Reaction: Prepare qPCR mix containing sample extract (e.g., 2 µL of 1:10 diluted extract) and a known quantity of exogenous template.
• Control Reactions: Prepare identical reactions containing (a) nuclease-free water instead of sample, and (b) a known inhibitor-free control nucleic acid.
• Run qPCR: Perform amplification with standard cycling conditions.
• Analysis: Compare the Cq (quantification cycle) of the spiked sample to the water control. A ∆Cq > 0.5 (sample Cq - control Cq) indicates significant inhibition.

Visualizing the Validation Workflow

Diagram Title: Nucleic Acid Validation Workflow Post-Microfluidic Extraction

The Scientist's Toolkit: Key Research Reagent Solutions

Item	Function in Validation	Example Product/Brand
Microvolume Spectrophotometer	Measures concentration and spectral purity ratios (A260/A280, A260/A230) using 1-2 µL of sample.	Thermo Fisher NanoDrop, DeNovix DS-11
Fluorometric Quantitation Kit	Dye-based assay for specific, contaminant-resistant quantification of dsDNA, ssDNA, or RNA.	Invitrogen Qubit dsDNA HS Assay, Promega QuantiFluor
Automated Electrophoresis System	Provides digital electrophoretograms and integrity numbers (RIN/DIN) for RNA/DNA quality assessment.	Agilent Bioanalyzer 2100, Agilent TapeStation
qPCR Master Mix with UNG	For inhibitor testing; includes uracil-N-glycosylase to prevent amplicon carryover contamination.	Applied Biosystems TaqMan Fast Advanced, Roche LightCycler 480 Probes Master
Exogenous Control Template & Primers	Non-biological DNA/RNA spike for inhibition detection assays (e.g., phage lambda, synthetic oligo).	TaqMan Exogenous Internal Positive Control, custom gBlocks Gene Fragments
Nuclease-free Water (PCR Grade)	Critical diluent and negative control for all quantification and purity assays.	Invitrogen UltraPure, Sigma-Aldrich Molecular Biology Grade
Low-Binding Microcentrifuge Tubes & Tips	Minimizes adsorption loss of low-concentration nucleic acid samples from microfluidic eluates.	Eppendorf LoBind, Axygen Maxymum Recovery

Within the broader thesis research on automated microfluidic nucleic acid extraction, the performance and compatibility of the eluted nucleic acids with major downstream analytical techniques is paramount. This document details application notes and protocols for validating eluates from the microfluidic chip platform for use in Polymerase Chain Reaction (PCR), quantitative PCR (qPCR), Digital PCR (dPCR), and Next-Generation Sequencing (NGS). Validation ensures that the chip's extraction process does not introduce inhibitors or cause degradation that would compromise sensitivity, accuracy, or reproducibility in these critical applications.

The following table summarizes the quantitative benchmarks used to validate downstream compatibility for nucleic acids extracted via the microfluidic platform.

Table 1: Downstream Application Validation Metrics

Downstream Technique	Key Validation Metrics	Acceptance Criteria (Example)	Typical Result from Chip Eluate
Conventional PCR	Amplification Success, Band Intensity, Specificity	Clear target band on agarose gel, no primer-dimers or non-specific bands.	Positive amplification for targets ≥ 150bp.
qPCR / RT-qPCR	Cq (Quantification Cycle), Amplification Efficiency, R², Inhibition (via ∆Cq)	Efficiency: 90-110%, R² > 0.990, ∆Cq (spiked control) < 0.5 cycles.	Efficiency: 95-105%, minimal Cq shift vs. column-based extraction.
Digital PCR	Copies/µL (Absolute Quantification), Precision (Poisson CI), Target Concentration	High confidence interval agreement, low false-negative rate in partitions.	Precise absolute quantification, linear correlation with input.
NGS (Library Prep)	Library Yield (ng), Fragment Size Distribution, % Adapter Ligated, Cluster Density, Q30 Score, % Aligned Reads	Adequate yield for sequencing, expected insert size, Q30 > 85%, alignment rate > 90%.	High-quality libraries meeting platform-specific requirements.
Universal	Purity (A260/A280, A260/A230), Integrity (RIN/DIN), Elution Volume & Buffer	A260/A280: 1.8-2.0; A260/A230: >2.0; RIN > 8.0 (RNA); Eluted in low-EDTA TE or nuclease-free water.	Meets purity standards; compatible with enzymatic reactions.

Detailed Experimental Protocols

Protocol 1: Validation via Quantitative PCR (qPCR) Inhibition Assay

Objective: To detect the presence of PCR inhibitors co-extracted by the microfluidic chip. Materials: Extracted nucleic acid (eluate), qPCR master mix, target-specific primer/probe set, reference DNA (e.g., exogenous internal control DNA), nuclease-free water. Procedure:

• Prepare two reaction sets in triplicate.
• Set A (Test for Inhibition): Combine master mix, primers/probe, and a defined volume of the chip-extracted eluate (e.g., 2 µL, 5 µL).
• Set B (Control): Combine master mix, primers/probe, and an equivalent volume of nuclease-free water.
• Spike an identical, known low copy number of the reference DNA (e.g., 1000 copies) into all reactions in both Set A and Set B.
• Run qPCR using standard cycling conditions.
• Analysis: Calculate the mean Cq for the reference target in both sets. A ∆Cq (Cq_{Set A} - Cq_{Set B}) > 0.5 cycles indicates the presence of inhibitors in the eluate.

Protocol 2: Validation for Next-Generation Sequencing

Objective: To assess the suitability of chip-extracted DNA for Illumina-style library preparation. Materials: Chip-extracted genomic DNA, dsDNA HS Assay Kit (Qubit), Fragment Analyzer or Bioanalyzer, commercial DNA library preparation kit (e.g., Illumina Nextera Flex). Procedure:

• Quantification and QC: Precisely quantify the eluted DNA using a fluorescence-based assay (e.g., Qubit). Assess integrity and size profile using a Fragment Analyzer (Agilent) to generate a DNA Integrity Number (DIN).
• Library Preparation: Input a standardized amount (e.g., 50 ng) of chip-extracted DNA into the library prep workflow per the manufacturer's instructions. Include a positive control (DNA from a standard extraction method).
• Post-Ligation QC: Quantify the final library yield (Qubit) and analyze the fragment size distribution (Fragment Analyzer) to confirm successful adapter ligation and appropriate insert size.
• Sequencing: Pool libraries at equimolar concentrations and sequence on a MiSeq or NextSeq platform. Compare key outputs: cluster density, % bases ≥ Q30, and alignment rates to the reference genome against the positive control.

Experimental Workflow Diagrams

Title: Workflow for Downstream Compatibility Validation

Title: Decision Logic for qPCR Inhibition Results

The Scientist's Toolkit: Essential Research Reagents & Materials

Table 2: Key Reagent Solutions for Downstream Validation

Item	Function / Role in Validation	Example Product/Category
Fluorometric DNA/RNA QC Kit	Accurate, selective quantification of nucleic acids independent of contaminants.	Qubit dsDNA HS / RNA HS Assay Kits (Thermo Fisher).
Fragment Analyzer / Bioanalyzer Kits	Assess nucleic acid integrity and size distribution (RIN, DIN, fragment size).	Agilent High Sensitivity DNA/RNA Kit.
Universal qPCR Master Mix	Robust enzyme mix for inhibitor-tolerant, efficient amplification in Cq assays.	TaqMan Fast Advanced Master Mix, PowerUp SYBR Green.
Exogenous Internal Control	Non-competitive synthetic DNA/RNA spiked post-extraction to test for inhibition.	TaqMan Exogenous Internal Positive Control (IPC).
Digital PCR Master Mix	Enzyme and buffer system optimized for precise partitioning and endpoint PCR.	ddPCR Supermix for Probes (Bio-Rad).
NGS Library Prep Kit	Enzymatic reagents for fragmentation, adapter ligation, and indexing of DNA.	Illumina DNA Prep, Nextera Flex.
SPRI Beads	Magnetic beads for size selection and clean-up during NGS library preparation.	AMPure XP / SPRIselect (Beckman Coulter).
Low-EDTA TE Buffer	Optimal, non-inhibitory elution/storage buffer for nucleic acids for enzymatic use.	10 mM Tris-HCl, 0.1 mM EDTA, pH 8.0.
Inhibitor-Removal Additives	Enhancers added to PCR to counteract residual inhibitors (if necessary).	Bovine Serum Albumin (BSA), T4 Gene 32 Protein.

This application note provides a quantitative framework for evaluating nucleic acid extraction methods within the context of advancing microfluidic chip-based automation. As research progresses toward fully integrated, sample-to-answer microfluidic systems, understanding the performance trade-offs between emerging chip-based platforms, established robotic workstations, and manual kits is critical for strategic laboratory implementation and further development.

Quantitative Comparison of Extraction Platforms

The following tables summarize key performance metrics based on current market data and published methodologies. Data is normalized for extraction from 200 µL of whole blood or cultured cells.

Table 1: Throughput and Operational Metrics Comparison

Platform / Method	Samples per Run	Hands-on Time (minutes)	Total Process Time	Throughput (samples/hour)	Footprint
Manual Spin-Column Kits	1-24 (batch)	30-45	60-90 min	16-24	Bench space
Robotic Liquid Handler	48-96	15-25 (setup)	90-120 min	30-64	Large benchtop
Microfluidic Chip (Cartridge-based)	1-12	<5 (load & start)	30-45 min	2-24*	Compact instrument
High-Throughput Robotic Station	96-384	20-40 (setup)	120-180 min	48-192	Floor system

*Throughput for microfluidic chips scales with parallelization; some systems offer multiple chip processing.

Table 2: Economic and Yield/Quality Metrics

Platform / Method	Approx. Cost per Sample (Reagents & Consumables)	Capital Equipment Cost	Typical DNA Yield (from 200µL blood)	A260/A280 Purity	Suitability for Downstream NGS
Manual Spin-Column Kits	$2 - $5	$0 (centrifuge/ vortex)	2 - 6 µg	1.7 - 1.9	Good (inhibitor carryover possible)
Robotic Liquid Handler	$3 - $7	$50,000 - $150,000	2 - 5 µg	1.7 - 1.9	Good (consistent)
Microfluidic Chip	$8 - $20	$10,000 - $40,000	1 - 4 µg	1.8 - 2.0	Excellent (low inhibitor)
High-Throughput Station	$4 - $10	$150,000+	2 - 5 µg	1.7 - 1.9	Good

Experimental Protocols for Performance Validation

Protocol 3.1: Comparative Extraction from Whole Blood

Objective: To directly compare yield, purity, and hands-on time across the three platform types. Samples: Fresh whole blood, K2-EDTA tubes (n=5 per platform). Reagents: Commercial lysis, wash, and elution buffers matched where possible.

Procedure:

• Sample Preparation: Aliquot 200 µL of whole blood into input tubes or microfluidic chip reservoirs.
• Manual Kit (QIAGEN QIAamp DNA Mini Kit): a. Add 20 µL QIAGEN Protease and 200 µL AL buffer to sample. Vortex. Incubate at 56°C for 10 min. b. Add 200 µL ethanol (96-100%). Mix. c. Apply mixture to spin column. Centrifuge at 6000 x g for 1 min. d. Wash with 500 µL AW1 buffer (centrifuge 6000 x g, 1 min). e. Wash with 500 µL AW2 buffer (centrifuge 20,000 x g, 3 min). f. Elute in 100 µL AE buffer (incubate 5 min, centrifuge 6000 x g, 1 min). Record hands-on time.
• Robotic Station (e.g., Thermo Fisher KingFisher): a. Program method: Combine sample with 350 µL lysis/binding buffer and 50 µL magnetic beads in deep-well plate. b. Execute binding, two washes, and elution in 100 µL TE buffer per manufacturer. c. Record setup and hands-on time.
• Microfluidic Chip (e.g., Berkeley Lights Beacon): a. Load chip cartridge with reagents and sample. b. Insert into instrument and run "Genomic DNA Extraction" protocol (on-chip lysis, magnetic bead capture, washes, elution). c. Record hands-on time.
• Analysis: a. Quantify yield via Qubit dsDNA HS Assay. b. Assess purity via NanoDrop A260/A280. c. Evaluate integrity via agarose gel electrophoresis.

Protocol 3.2: Cost-Per-Sample Breakdown Analysis

Objective: To deconstruct the total cost per sample for each platform. Procedure:

• Capital Cost Amortization: Divide instrument list price by its operational lifespan (5 years) and annual projected sample capacity.
• Consumables Cost: Sum costs of extraction kits, plates, tips, and chip cartridges per run.
• Labor Cost: Multiply hands-on time (in hours) by a fully burdened labor rate (e.g., $75/hour).
• Overhead: Allocate facility costs.
• Calculation: Total Cost per Sample = (Amortized Capital + Consumables + Labor + Overhead) / Samples per Run.

Workflow and Decision Logic Diagrams

Diagram Title: Nucleic Acid Extraction Platform Selection Logic

Diagram Title: Hands-on Time Comparison Across Platforms

The Scientist's Toolkit: Research Reagent Solutions

Item	Function in Microfluidic NA Extraction	Example Product/Note
Surface-functionalized Magnetic Beads	Selective binding of nucleic acids under optimized buffer conditions; core for solid-phase extraction on-chip.	Silica-coated or carboxyl-modified beads (e.g., Sera-Mag beads).
Chaotropic Salt Lysis Buffer	Denatures proteins, releases NA, and promotes binding to silica surfaces.	Guanidine hydrochloride or guanidine thiocyanate based.
Low-salt Wash Buffer	Removes contaminants, salts, and proteins while keeping NA bound to beads.	Ethanol or isopropanol containing Tris-EDTA or citrate buffers.
Nuclease-free Elution Buffer	Low ionic strength solution (e.g., TE, water) to disrupt bead-NA interaction for high-yield recovery.	10 mM Tris-HCl, pH 8.5.
Carrier RNA	Improves yield of low-concentration samples by co-precipitating with target NA.	Used in some viral extraction protocols.
On-Chip Valve Actuation Fluid	Pneumatic or hydraulic fluid to control membrane valves in microfluidic circuits.	Deionized water or air for pneumatic systems.
Passivation Reagent	Coats microfluidic channels to prevent non-specific adsorption of NA/proteins.	PEG-silane, BSA, or Pluronic solutions.
Fluidic Interface Reagents	Gels or oils to prevent evaporation and cross-contamination in chip wells.	Mineral oil, DOWSIL 7490 Fluid.

1. Application Notes

The integration of automated nucleic acid extraction onto microfluidic chips represents a paradigm shift in molecular diagnostics and life sciences research. This convergence addresses critical demands for rapid, point-of-care (POC), and field-deployable genetic analysis. The core strengths of these systems—portability, integration potential, and true sample-to-answer capability—are interdependent, driving innovation in pathogen detection, environmental monitoring, and personalized medicine.

• Portability: Modern microfluidic extraction chips leverage compact form factors, low-power requirements (often battery-operated), and minimal reagent volumes. This enables deployment in resource-limited settings, at the bedside, or for field surveillance of infectious diseases or environmental pathogens. The reduction from benchtop instruments to handheld or briefcase-sized devices is a direct result of microfluidic engineering.

• Integration Potential (The "Lab-on-a-Chip" Vision): The principal advantage of microfluidics is the ability to integrate and automate multiple laboratory functions. A single chip can sequentially incorporate:

  • Sample Preparation: Cell lysis (chemical, thermal, or mechanical).
  • Nucleic Acid Extraction: Solid-phase extraction (e.g., silica membranes/beads in microchambers), liquid-liquid extraction, or magnetic bead-based capture.
  • Amplification: Integration of on-chip heaters and sensors for isothermal (RPA, LAMP) or PCR-based amplification.
  • Detection: Fluorescence, colorimetric, or electrochemical detection modules integrated downstream. This monolithic integration reduces user intervention, contamination risk, and total processing time.

• Sample-to-Answer Capability: This is the ultimate metric of a fully integrated system. It refers to the automated processing of a crude sample (e.g., blood, saliva, swab eluent) to a qualitative or quantitative result without external intervention. Success hinges on the seamless fluidic control, reagent stability (e.g., lyophilized reagents on-chip), and robust on-chip valving and pumping mechanisms that link the extraction module to downstream analysis.

Table 1: Quantitative Performance Metrics of Recent Microfluidic NA Extraction & Analysis Systems

System / Chip Type	Extraction Efficiency (%)	Processing Time (min)	Sample Input Volume (µL)	Elution Volume (µL)	Integrated Downstream Step	Reference (Example)
Silica Membrane-based Chip	75-85%	15-20	100-200	20-50	RT-PCR	Chen et al., 2023
Magnetic Bead-based Chip	80-95%	10-15	50-100	10-25	LAMP & Fluorescence	Smith et al., 2024
Paper-based Microfluidic	60-75%	20-30	20-50	5-15	Colorimetric RPA	Kumar & Lee, 2023
Centrifugal (Lab-on-CD) Chip	85-90%	8-12	100-300	30-60	qPCR	Park et al., 2023

2. Experimental Protocols

Protocol 1: Evaluation of Integrated Magnetic Bead-based Extraction and LAMP on a Prototype Chip

Objective: To validate the sample-to-answer capability for detecting Mycobacterium tuberculosis DNA from simulated sputum samples.

The Scientist's Toolkit: Key Research Reagent Solutions

Item	Function
Chip Fabrication: PDMS (Polydimethylsiloxane) & Glass	Forms the main body of the microfluidic device; allows for channel molding and optical clarity.
Silane-coated Superparamagnetic Beads	Bind nucleic acids under high-ionic-strength conditions; enable movement and washing via external magnets.
Guanidine Hydrochloride Lysis/Binding Buffer	Denatures proteins and provides high salt for nucleic acid binding to silica-coated magnetic beads.
Ethanol Wash Buffer (70-80%)	Removes salts, proteins, and other contaminants from the bead-nucleic acid complex.
Low-Salt Elution Buffer (TE or nuclease-free H(_2)O)	Disrupts bead-DNA interaction, releasing purified nucleic acid in a small volume.
Lyophilized LAMP Master Mix	Contains polymerase, dNTPs, and buffer; stable at room temperature for on-chip storage and rapid rehydration.
Fluorescent Intercalating Dye (e.g., SYTO 9)	Binds to double-stranded LAMP amplicons, enabling real-time or endpoint fluorescence detection.
Positive Control (M. tuberculosis gDNA)	Validates the entire integrated process from extraction to detection.

Methodology:

• Chip Priming: Load all required liquid reagents (lysis, wash, elution buffers) into the on-chip blister pouches or reservoirs. Pre-load lyophilized LAMP reagents (primers, master mix) into the amplification reaction chamber.
• Sample Introduction: Mix 50 µL of simulated sputum sample (containing inactivated M. tuberculosis cells) with 150 µL of lysis/binding buffer off-chip. Load the 200 µL mixture into the chip's sample inlet port.
• Automated Extraction Sequence (On-chip):
  • Lysis & Binding: The sample-lysis mixture is pumped into a mixing chamber containing 10 µL of magnetic bead suspension. Incubate for 5 minutes with agitation.
  • Bead Capture & Washing: Using an external programmable magnet, beads are captured against the chamber wall. The waste supernatant is evacuated. Beads are washed twice with 200 µL of ethanol-based wash buffer.
  • Drying & Elution: Residual ethanol is removed by a brief air purge. Beads are moved (via magnet) to the elution chamber containing 25 µL of pre-loaded elution buffer. Incubate at 65°C for 3 minutes to elute DNA.
• Integrated Amplification & Detection:
  • The eluate containing DNA is pumped into the LAMP reaction chamber, rehydrating the lyophilized pellet.
  • The chamber is sealed and heated to 65°C by an integrated thin-film heater for 30 minutes.
  • Real-time fluorescence is monitored via a miniaturized optical module (LED and photodiode). A positive result is indicated by a fluorescence threshold crossing within 25 minutes.
• Analysis: Compare threshold times (T(_t)) of samples against positive and negative controls run on the same chip batch.

Protocol 2: Benchmarking Portability: Field Deployment for Environmental Water Screening

Objective: To compare the performance of a portable, battery-operated microfluidic extraction/PCR system against standard lab-based extraction and qPCR for detecting Legionella spp. in water samples.

Methodology:

• Field Site Preparation: Deploy the portable system (chip reader, battery pack, disposable chips) at the sampling site.
• Sample Processing: Filter 1L of water through a field-deployable membrane. Elute captured material into 2mL concentrate.
• On-site Testing: Load 100 µL of the concentrate into the portable system's disposable microfluidic chip. Initiate the automated "start" protocol. The system performs extraction, RT-PCR, and provides a "Detected/Not Detected" result in < 90 minutes.
• Parallel Lab-based Testing: Preserve an aliquot of the same concentrate, transport on ice to the central lab, and process using a commercial column-based extraction kit followed by bench-top qPCR.
• Data Comparison: Calculate percent agreement, sensitivity, and specificity of the portable system using the lab-based method as the reference standard. Record system power consumption and operational time on battery.

3. Diagrams

Within the broader thesis on advancing automated nucleic acid extraction (NAE) on microfluidic chips, three critical limitations constrain translation from robust proof-of-concept to widespread clinical and research application: Maximum Input Volume, Scalability, and Instrument Dependence. This document provides a detailed analysis of these constraints, supported by current data, and outlines standardized experimental protocols for their systematic evaluation.

Quantitative Analysis of Current Limitations

Maximum Input Volume in Microfluidic NAE

The maximum input volume defines the upper limit of raw biological sample (e.g., blood, saliva, tissue homogenate) a chip can process without compromising efficiency. It is intrinsically linked to lysate dilution, binding surface area, and on-chip storage capacity for reagents and waste.

Table 1: Maximum Input Volume and Performance Metrics for Representative Microfluidic NAE Platforms

Platform/Chip Technology	Max Input Volume (µL)	Reported Extraction Efficiency (%)	Elution Volume (µL)	Primary Limiting Factor	Ref. Year
Silica Membrane Spin-Column (Benchmark)	1000	60-85	50-100	Manual processing, centrifugation	-
PDMS-based Passive Mixing Chip	50	~70	20	On-chip binding chamber size	2022
Glass-based SPE Channel Chip	200	~80	30	Reagent storage capacity	2023
Integrated Magnetic Bead-based Chip	300	65-75	50	Bead retention efficiency at high flow	2023
"Digital" Droplet-based NAE	10 per droplet	>90 (per droplet)	N/A	Sample partitioning complexity	2024

Key Insight: Current microfluidic chips typically max out at 200-500 µL for whole blood or viscous samples, significantly below the 1-10 mL often required for low-abundance targets in liquid biopsies or pathogen detection.

Scalability: Throughput vs. Footprint

Scalability refers to the ability to increase sample processing throughput (number of samples per run) without proportionally increasing cost, footprint, or complexity.

Table 2: Scalability Comparison of Microfluidic NAE Architectures

Architecture	Theoretical Throughput (Samples/Run)	Typical Chip Footprint (cm²)	Multiplexing Method	Key Bottleneck
Single-Channel Serial	1	2-4	N/A	Processing time per sample
Parallel Multi-Channel	4-8	10-20	Channel duplication	Manufacturing tolerance, cross-contamination
Droplet Microfluidics	High (10²-10³ reactions)	5-10	Sample digitization	Droplet merging, reagent coalescence
Microfluidic Well Plates	24-96	~50-100	Array of wells	Integrated valving and fluidic control

Key Insight: While parallelization increases throughput, it exacerbates instrument dependence due to the need for complex, high-precision fluidic drivers.

Instrument Dependence Analysis

Instrument dependence quantifies the reliance on external peripherals for chip operation. High dependence increases system cost and limits field deployment.

Table 3: Dependence Profile of Common Microfluidic Actuation Methods

Actuation Method	Required External Instrumentation	Approx. System Cost (USD)	Portability Score (1-5)	Typical Power Requirement
Pressure-Driven (Pneumatic)	Compressed air/N₂ tank, solenoid valves, pressure regulator	$5,000 - $20,000	2	High
Syringe Pump	One or more precision syringe pumps	$1,000 - $5,000	3	Medium
Centrifugal	Precision spindle motor, controller	$10,000 - $50,000	1	High
Electrokinetic	High-voltage power supply, electrodes	$2,000 - $10,000	2	Low
Capillary/Self-Driven	None (or manual syringe initiator)	< $100	5	None

Key Insight: There is a direct trade-off between functional sophistication (and thus processed sample volume/throughput) and the level of instrument dependence.

Experimental Protocols for Limitation Analysis

Protocol A: Determining Maximum Functional Input Volume

Objective: To empirically determine the maximum input volume of a raw sample for a given microfluidic NAE chip while maintaining >60% extraction efficiency. Materials: See Scientist's Toolkit (Section 5.0). Procedure:

• Spiked Sample Preparation: Serially dilute a known quantity of target nucleic acid (e.g., λ-DNA, synthetic RNA control) in the sample matrix (e.g., whole blood, saliva, buffer).
• Volume Series Loading: Load the chip with increasing input volumes (e.g., 50, 100, 200, 300 µL) of the spiked sample in triplicate.
• On-Chip Processing: Execute the standard NAE protocol (lysis, binding, washing, elution) as designed for the chip.
• Eluate Collection & Quantification: Collect the eluate. Quantify recovered nucleic acid using a fluorescent assay (e.g., Qubit) and target-specific qPCR to calculate yield and efficiency.
• Failure Point Identification: The maximum functional input volume is defined as the highest volume before a significant drop (>20% relative decrease) in efficiency or chip failure (e.g., clogging, overflow).

Protocol B: Scalability and Cross-Contamination Testing

Objective: To assess throughput scalability and inter-channel cross-contamination in a parallel-architecture chip. Materials: See Scientist's Toolkit (Section 5.0). Procedure:

• Differential Spiking: For an N-channel chip, load Channel 1 with a sample spiked with a high concentration of a distinct target (e.g., a specific bacterial DNA sequence). Load all other channels (2 to N) with the same sample matrix spiked with a low concentration of a different target (e.g., a synthetic internal control).
• Parallel Processing: Run the full NAE protocol simultaneously on all channels.
• Post-Elution Analysis: Quantify the high-concentration target in all eluates (channels 1 to N) via specific qPCR. Its presence in channels 2-N indicates fluidic or aerosol cross-contamination.
• Throughput-Calculation: The effective, contamination-free throughput is the number of channels where the off-target signal is below the limit of detection (e.g., < 0.1% carryover).

Protocol C: Instrument Dependence Deconstruction

Objective: To isolate and quantify the contribution of each external instrument component to NAE performance. Materials: See Scientist's Toolkit (Section 5.0). Procedure:

• Baseline Establishment: Run the chip using the full, recommended instrument suite (e.g., pressure pump, valve controller, heater). Measure yield, purity, and time-to-result.
• Component Substitution/Removal: Iteratively replace or remove one instrument component with a simplified alternative.
  • Example 1: Replace a precision pressure pump with a manually compressed air bulb.
  • Example 2: Replace a thermal cycler with a constant temperature block.
• Performance Metric Comparison: For each simplified configuration, repeat the NAE process and measure the same performance metrics.
• Dependence Index Calculation: Calculate a normalized "Dependence Index" (DI) for each component: DI = (Performance_baseline - Performance_simplified) / Performance_baseline. High DI indicates high dependence.

Visualization of Relationships and Workflows

Diagram 1: Interrelation of Core NAE Chip Limitations

Diagram 2: Max Input Volume Determination Workflow

The Scientist's Toolkit: Research Reagent Solutions

Table 4: Essential Materials for Microfluidic NAE Limitation Studies

Item	Function/Application	Example Product/Catalog
Nucleic Acid Standards	Spiking controls for yield/efficiency calculation.	Lambda DNA (Thermo Fisher, #SD0011), ERCC RNA Spike-In Mix (Thermo Fisher, #4456740).
Fluorescent Nucleic Acid Stain	Direct quantification of total nucleic acid yield in eluates.	Qubit dsDNA/RNA HS Assay Kits (Thermo Fisher, #Q32851/Q32852).
qPCR Master Mix & Assays	Target-specific quantification for efficiency and cross-contamination tests.	TaqMan Fast Advanced Master Mix (Thermo Fisher, #4444557), custom synthetic gBlock gene fragments (IDT).
Passivation Reagent	Reduces non-specific binding on chip surfaces, critical for low-input/high-volume work.	Bovine Serum Albumin (BSA, 1% w/v), Pluronic F-127 (1% w/v), PEG-silane.
Magnetic Silica Beads	Solid-phase extraction matrix for most bead-based NAE chips.	Sera-Mag Carboxylate-Modified Beads (Cytiva, #65152105050250).
Chaotropic Lysis/Binding Buffer	Denatures proteins, exposes nucleic acids, and promotes binding to silica.	Guanidine HCl (6 M) with Triton X-100 and Citrate buffer (pH ~5.0).
Low-Binding Microtubes	Prevents loss of low-concentration nucleic acid eluates during collection.	LoBind Tubes (Eppendorf, #022431021).
Precision Fluidic Connectors	Interfaces chip ports with external pumps/syringes for dependence testing.	NanoPort assemblies (IDEX Health & Science, #N-333).

Integrated Commercial Platforms for Automated Nucleic Acid Extraction

Commercial platforms offer end-to-sample-answer solutions, integrating extraction, amplification, and detection. They prioritize reproducibility, user-friendliness, and regulatory compliance (e.g., IVD-CE, FDA-EUA).

Table 1: Key Commercial Integrated Platforms (Q1 2025)

Platform Name (Company)	Throughput (samples/run)	Extraction Chemistry	Downstream Integration	Approx. Cost per Sample (USD)	Key Application Focus
GeneXpert Omni (Cepheid)	1-8 (modular)	Silica-based membrane	Real-time PCR	$15-$25	Point-of-Care, infectious disease
Idylla (Biocartis)	1-8	Proprietary cartridge-based	Real-time PCR	$40-$60	Oncology, mutation detection
MiSeqDx (Illumina)	Up to 96	Magnetic beads (kit-dependent)	NGS Library Prep & Sequencing	$100-$500+ (full workflow)	Genetic variation, oncology
QIAstat-Dx (Qiagen)	1-24	Silica-based (cartridge)	Syndromic PCR Panel	$80-$120	Respiratory, GI syndromic testing
Revogene (Meridian)	1-8	Magnetic particles	Real-time PCR	$20-$35	Bacterial infections, AMR

Research-Grade Microfluidic Chip Designs

Academic and biotech research focuses on novel chip architectures for extraction, emphasizing low cost, low sample/reagent volume, and novel physics. These are rarely fully integrated.

Table 2: Comparison of Recent Research-Grade Chip Design Principles (2023-2024)

Design Principle (Example Study)	Substrate Material	Extraction Method	LOD (copies/µL)	Elution Volume (µL)	Reported Yield (%) vs. Bench
Silica-coated micropillars (Lab Chip, 2023)	Cyclic Olefin Copolymer (COC)	Solid-phase (silica)	~10 (SARS-CoV-2)	20	75-85%
Magnetic bead-based droplet (Science Advances, 2024)	PDMS/Glass	SPRI beads in picoliter droplets	~5 (HIV RNA)	<1	>90%
Electrokinetic trapping (Analytical Chemistry, 2024)	Glass	Isoelectric trapping on membrane	~50 (gDNA)	10	~70%
Acoustofluidic dissolution (Nature Comm., 2023)	Silicon/Glass	Solvent-based, acoustically accelerated	N/A (tissue)	30	Comparable to column
Paper-based lateral flow (Biosensors & Bioelectronics, 2024)	Cellulose/PDMS	Ionic liquid-based phase separation	100 (plasmid DNA)	15	~65%

Experimental Protocols

Protocol: Benchmarking a Research-Grade PDMS/Glass Bead-Based Chip Against a Commercial Platform

Aim: Compare extraction efficiency and purity of human gDNA from whole blood.

Materials:

• Research-grade chip (PDMS/glass, with integrated micromixers and magnetic bead trapping zones).
• Commercial benchmark: QIAamp DNA Blood Mini Kit (Qiagen) on a QIAcube (automated station).
• Fresh human whole blood (EDTA anticoagulated).
• Lysis/binding buffer (GuHCl-based), wash buffers (70% ethanol), elution buffer (10 mM Tris-HCl, pH 8.5).
• Magnetic beads (silica-coated, ~1 µm).
• External neodymium magnet array.
• Syringe pumps and tubing.
• Nanodrop spectrophotometer and Qubit fluorometer.

Procedure:

• Chip Preparation: Treat microfluidic channels with 1% Pluronic F-127 for 10 min to reduce non-specific binding. Rinse with DI water.
• Sample Preparation: Aliquot 20 µL whole blood. Lyse with 180 µL lysis/binding buffer and 20 µL proteinase K. Incubate at 56°C for 10 min.
• Bead Binding: Add 20 µL magnetic bead suspension to lysate. Load mixture into chip reservoir.
• On-Chip Processing:
  • Activate syringe pump (flow rate: 5 µL/min) to move mixture through a serpentine mixing channel (5 min).
  • Position magnet array under chip trapping region for 2 min to immobilize bead-DNA complexes.
  • Wash with two 50 µL volumes of Wash Buffer 1, followed by one 50 µL volume of 70% ethanol (flow rate: 10 µL/min).
  • Dry channels with air push (5 µL).
  • Remove magnet, elute DNA with 25 µL pre-heated (70°C) elution buffer (flow rate: 2 µL/min). Collect eluate.
• Commercial Control: Process 200 µL of the same blood sample on QIAcube per manufacturer's protocol, eluting in 50 µL.
• Analysis:
  • Quantify DNA yield (ng/µL) using Qubit dsDNA HS Assay.
  • Assess purity via A260/A280 ratio (Nanodrop).
  • Run eluates on 1% agarose gel to check fragmentation.
  • Perform qPCR on a housekeeping gene (e.g., RNase P) to assess PCR inhibitor presence (Cq shift vs. control).

Protocol: Evaluating a Novel Acoustofluidic Cell Lysis & Extraction Chip

Aim: Validate an integrated lysis and extraction chip using surface acoustic waves (SAW).

Materials:

• Lithium Niobate (LN) SAW chip with microfluidic channel.
• Function generator, RF amplifier, and matching network.
• Cell suspension (e.g., E. coli culture).
• Lysis buffer (e.g., containing Lysozyme and Triton X-100).
• Binding buffer (GuHCl, isopropanol).
• Off-chip silica spin column for post-lysate capture.
• Standard molecular biology reagents for gel electrophoresis.

Procedure:

• Chip Setup: Align polydimethylsiloxane (PDMS) microchannel over the interdigital transducers (IDTs) on the LN substrate. Connect fluidic tubing.
• SAW Parameter Calibration: Apply a RF signal (e.g., 20 MHz) at varying powers (0.5-2 W) to a PBS-filled channel to identify the power setting that induces strong acoustic streaming without excessive heating.
• Integrated Lysis & Mixing:
  • Premix 10 µL cell suspension with 20 µL lysis buffer and 30 µL binding buffer in a syringe.
  • Infuse mixture into the channel at 2 µL/min.
  • Activate SAW continuously as the mixture flows across the IDT region. The intense acoustic streaming provides rapid mechanical lysis and homogenization.
• Collection & Final Purification: Collect the chip's output lysate (~60 µL) directly into a silica membrane spin column.
• Completion: Perform two ethanol washes and elute DNA in 30 µL elution buffer as per column instructions.
• Validation: Quantify DNA yield, run on gel, and use PCR to amplify a target gene (e.g., 16s rRNA), comparing to a standard heat-lysis/phenol-chloroform extraction.

Diagrams

Commercial vs. Research-Grade Workflow Decision Logic

Title: Decision Logic for Platform Selection

Key Steps in a Magnetic Bead-Based Microfluidic Extraction

Title: Microfluidic Magnetic Bead Extraction Steps

The Scientist's Toolkit: Key Research Reagent Solutions

Table 3: Essential Reagents & Materials for Microfluidic NA Extraction Research

Item	Function in Research Context	Example Vendor/Product
Silica-coated Magnetic Beads	Solid-phase nucleic acid binding under chaotropic salts; enable movement via external magnets.	Thermo Fisher (Dynabeads), MagBio (GenMag beads)
Chaotropic Salt-Based Lysis/Binding Buffer	Disrupts cells, denatures proteins, and creates conditions for NA binding to silica.	Qiagen (AL Buffer), homemade (GuHCl, Isopropanol)
Cyclic Olefin Copolymer (COC)	Thermoplastic for chip fabrication; low autofluorescence, good for molding.	Topas, Zeonor
Polydimethylsiloxane (PDMS)	Elastomer for soft lithography; gas-permeable, easy to prototype.	Dow (Sylgard 184)
Pluronic F-127 or PEG Silane	Surface passivation agents to reduce non-specific adsorption of biomolecules to chip surfaces.	Sigma-Aldrich
Fluorinated Oil (for droplet microfluidics)	Continuous phase for generating stable water-in-oil droplets for digital NA analysis.	FluoroSurfactants (RAN Biotechnologies)
qPCR Master Mix with ROX/Iowa Black	For downstream quantification and inhibitor detection; ROX aids in well-factor normalization in chip-based readers.	Bio-Rad, Thermo Fisher, IDT
DNA/RNA Standard Reference Materials	Quantified standards (e.g., NIST) for calibrating yield and efficiency measurements across platforms.	NIST SRM, Seracare
Positive Control Lysate (e.g., virus particles)	Provides consistent, safe sample for system validation and limit of detection studies.	Zeptometrix, Exact Diagnostics

Conclusion

Automated nucleic acid extraction on microfluidic chips represents a paradigm shift, moving complex biochemistry from the benchtop to integrated, miniaturized systems. As explored, the foundational advantages of speed, low reagent use, and automation are being realized through diverse methodological approaches, though optimization of yield, purity, and robustness remains an active area of research. Successful validation against gold-standard methods is crucial for adoption. The future trajectory points toward fully integrated, sample-to-answer diagnostic devices, multiplexed extraction for complex samples, and seamless coupling with advanced detection modalities. For researchers and drug developers, mastering this technology is key to enabling the next generation of decentralized, high-throughput, and precise molecular analyses in both clinical and research settings.
